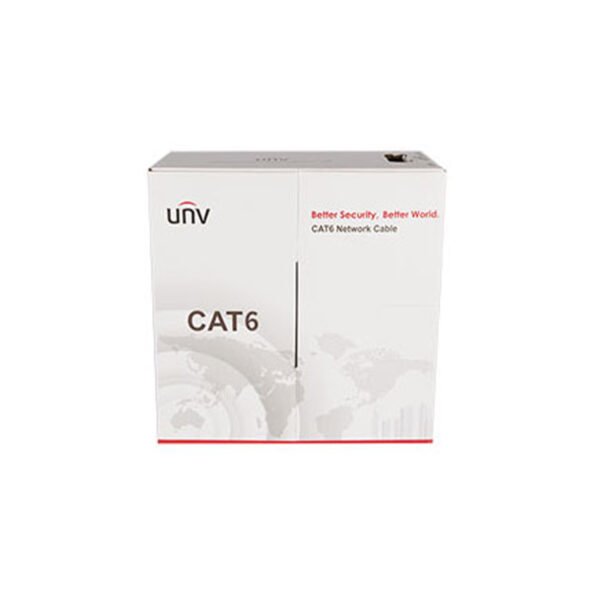

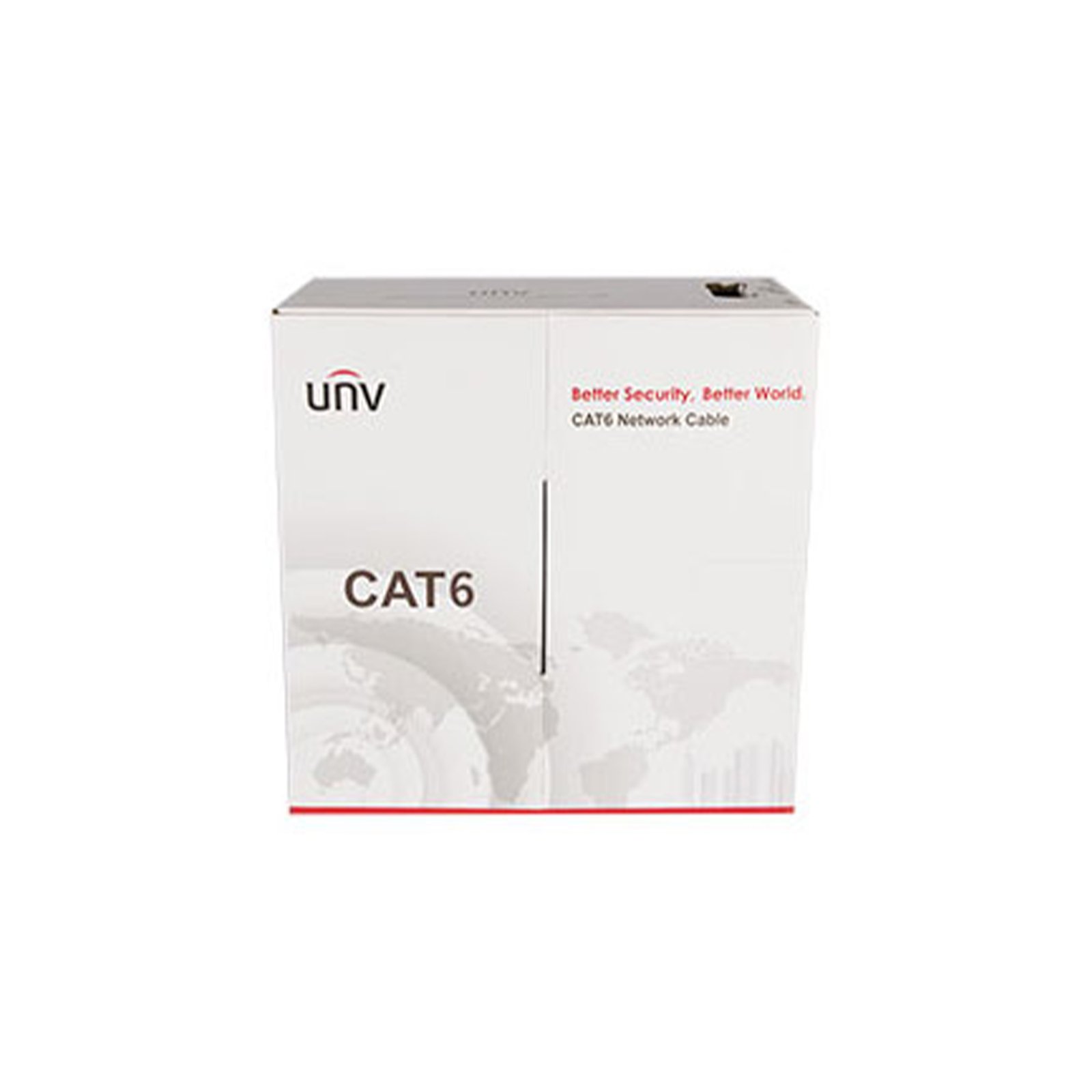

Uniview 305M CAT6 Ethernet Cable – Model CAB – LC3100B-CCA
EGP3,510
Uniview 305M CAT6 Ethernet Cable – Model CAB – LC3100B-CCA
| Cable Type | Network Cable |
|---|---|
| Cable Category | CAT6 |
| Cable Length | 305 meters |
| AWG (American Wire Gauge) | 24 AWG |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Outer Diameter (O.D.) | 5.8 mm |
The CAB-LC3100B-CCA is a high-quality 305-meter CAT6 Ethernet cable designed for fast and stable data transmission. It features Oxygen-Free Copper (OFC) conductors, which ensure optimal electrical performance, and is compliant with ISO/IEC11801 and TIA-568-C.2 standards. The cable has a PVC sheath that is RoHS and REACH compliant, offering durability and flexibility in various environmental conditions.
Key Features Include:
- Conductor Material: Made from Oxygen-Free Copper (OFC) for superior conductivity.
- AWG: The cable uses 24 AWG conductors with a nominal outer diameter of 0.52mm.
- Sheath Material: The outer sheath is made of PVC, ensuring compliance with RoHS/REACH standards.
- Color Coding: Pairs are color-coded as Blue/White-Blue, Green/White-Green, Orange/White-Orange, and Brown/White-Brown.
- High Tensile Strength: The cable’s PVC sheath offers a tensile strength of more than 13.5 Mpa.
- Packing Length: The cable comes in a 305-meter length, packed in a carton for easy transportation and installation.
| Category | CAB-LC3100B-CCA |
|---|---|
| Product Specification | HSYV-6 4×2×0.52 |
| Test Standard | ISO/IEC11801, TIA-568-C.2 |
| Conductor Material | Oxygen-Free Copper (OFC) |
| AWG | 24 |
| Nominal O.D. | 0.52±0.03mm |
| DC Resistance | ≤95 Ω/km |
| Insulation Material | HDPE |
| Insulation Thickness | 0.2±0.02mm |
| Insulation Diameter | 0.93±0.05mm |
| Sheath Material | PVC (RoHS/REACH compliant) |
| Sheath O.D. | 5.8±0.3mm |
| Sheath Thickness | 0.6±0.05mm |
| Tensile Strength | >13.5 Mpa |
| Print Color | Black |
| Packing Length | 305±1 meters |
| Temperature Range | -20℃ to 60℃ |
| Cable Type | Network Cable |
|---|---|
| Cable Category | CAT6 |
| Cable Length | 305 meters |
| AWG (American Wire Gauge) | 24 AWG |
| Conductor Material | Oxygen-Free Copper (OFC) |
| Outer Diameter (O.D.) | 5.8 mm |
