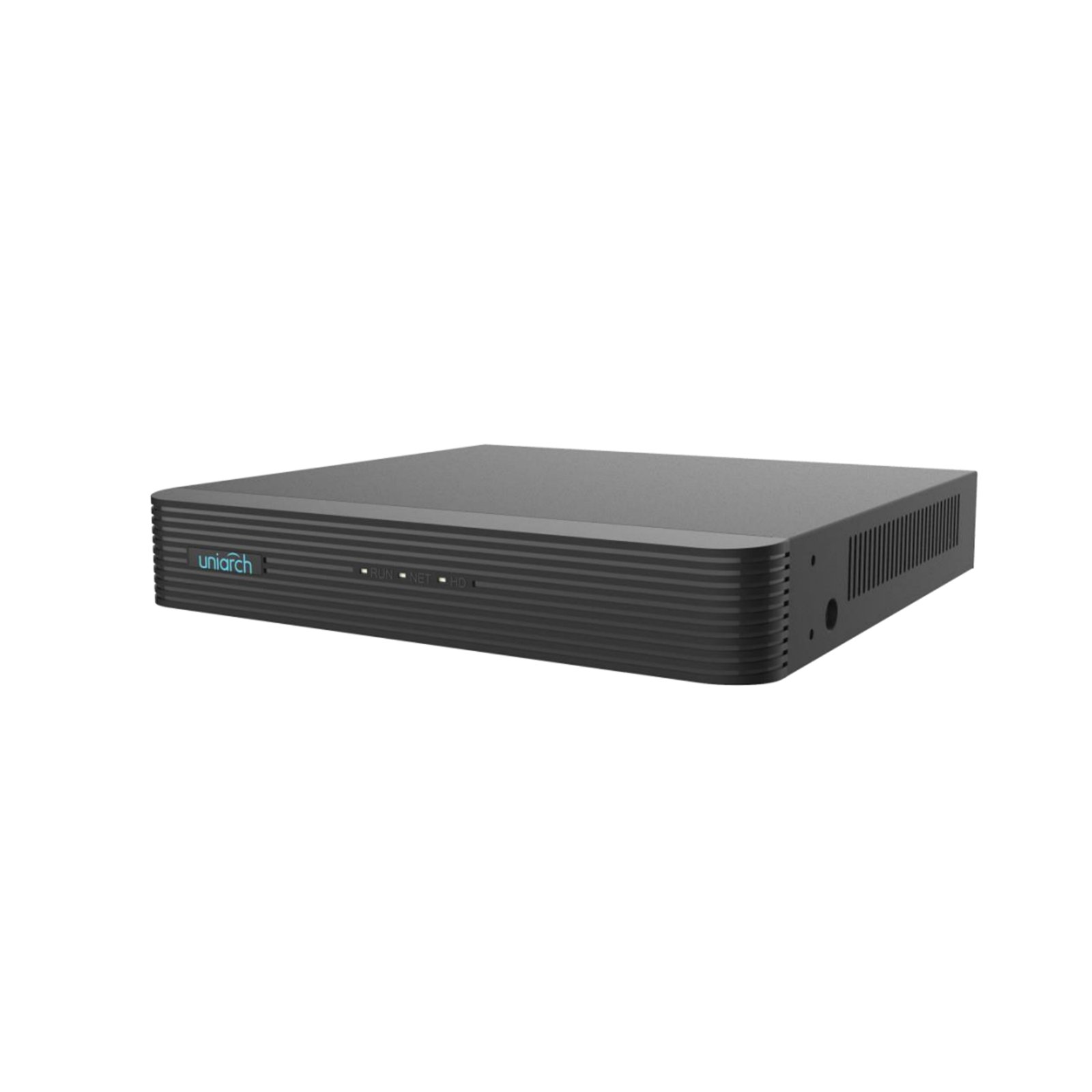

NVR-104E2-P4 – 4-Channel NVR with PoE, Ultra 265/H.265/H.264 Support, Recording Resolution: 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF
EGP2,625
Brand:
Uniarch
NVR-104E2-P4
| Device Type | NVR (Network Video Recorder) |
|---|---|
| Device Resolution | 8MP |
| Device Channels/Ports | 4 Channels (IP Video Input) with PoE |
| Max IP Video Input | 4 IP channels, each up to 8MP |
| Compression Technology | Ultra 265/H.265/H.264 |
| Device Signal Transmission | IP (Internet Protocol) |
| Device Storage | 1 SATA (supports up to 6TB) |
Out of stock
... people are viewing this right now
The UNIARCH NVR-104E2-P4 is a reliable 4-channel NVR designed to support high-definition IP cameras, featuring PoE for easy installation and power management. It supports Ultra 265, H.265, and H.264 video formats, providing efficient bandwidth usage and storage optimization. The device offers simultaneous HDMI and VGA outputs and supports recording resolutions up to 8MP. With the ability to handle third-party IP cameras conforming to ONVIF profiles S, G, and T, the NVR is highly versatile. It supports up to 6TB of storage on a single SATA HDD, and the cloud upgrade feature simplifies firmware management.
Key Features Include:
- Multi-Format Video Compression: Supports Ultra 265, H.265, and H.264 for efficient storage and bandwidth usage.
- PoE Support: Features 4 independent PoE interfaces for easy installation.
- Third-Party Camera Support: Compatible with ONVIF profiles S, G, T.
- High-Resolution Recording: Supports up to 8MP resolution recording.
- Simultaneous HDMI and VGA Outputs: Provides flexible display options.
- Cloud Upgrade: Simplifies firmware updates.
- Storage Capacity: Supports 1 SATA HDD up to 6TB.
| Model | NVR-104E2-P4 |
|---|---|
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, DHCP |
| Video/Audio Output | |
| HDMI Output | 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 4-ch |
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF |
| Decoding Capability | 1 x 8MP@30fps, 1 x 5MP@30fps, 2 x 4MP@30fps, 4 x 3MP@25fps, 4 x 1080p@30fps, 8 x 720p@30fps |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 6TB |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| PoE Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max PoE Power | Max 30W for single port, Max 54W in total |
| General | |
| Power Supply | 48V DC |
| Power Consumption | ≤9 W (without HDD) |
| Working Environment | -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") |
| Weight (without HDD) | ≤1.2kg (2.65 lb) |
| Device Type | NVR (Network Video Recorder) |
|---|---|
| Device Channels/Ports | 4 Channels |
| Compression Technology | Ultra 265/H.265/H.264 |
| Device Signal Transmission | IP (Internet Protocol), PoE (Power over Ethernet) |
| Device Storage | 1 SATA |
