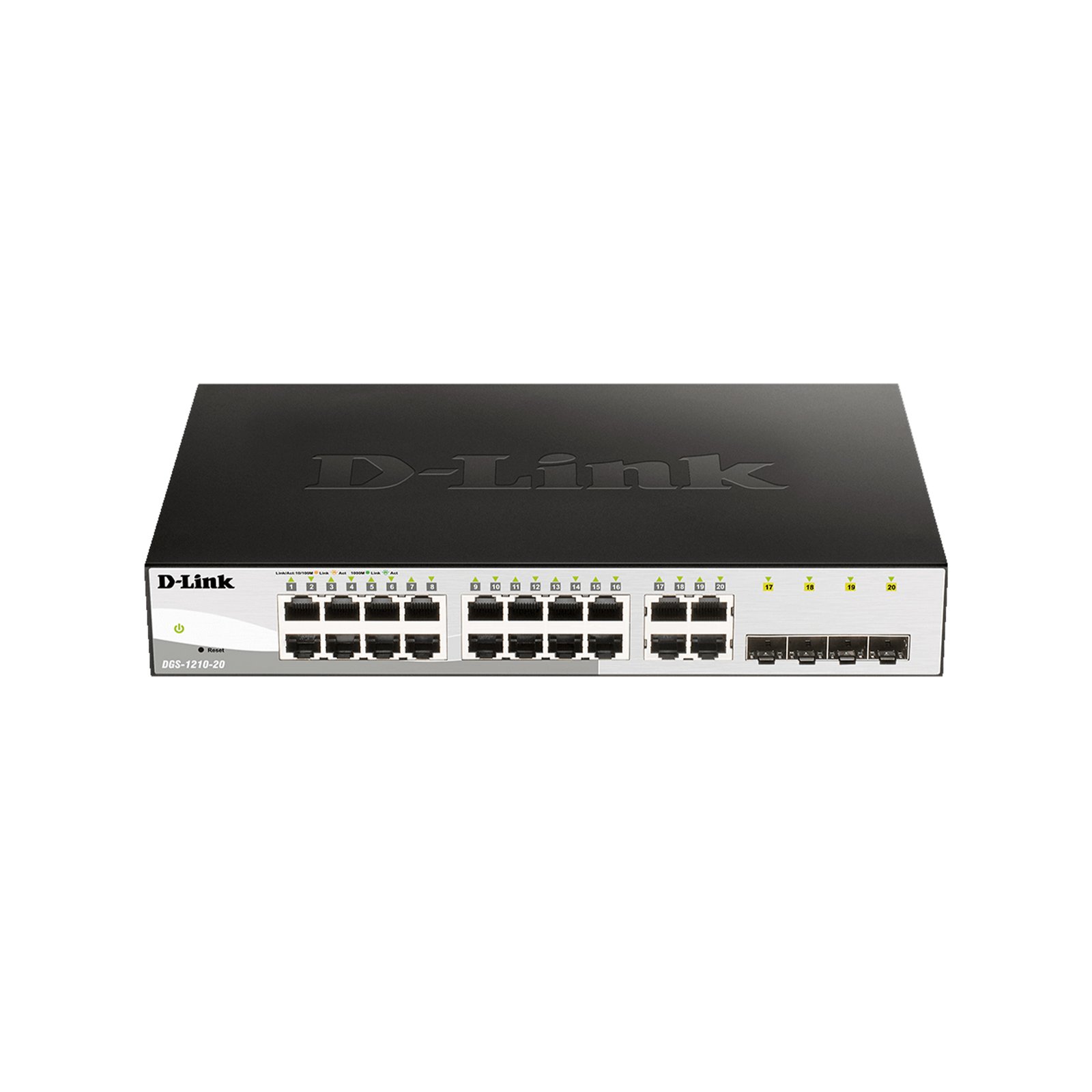

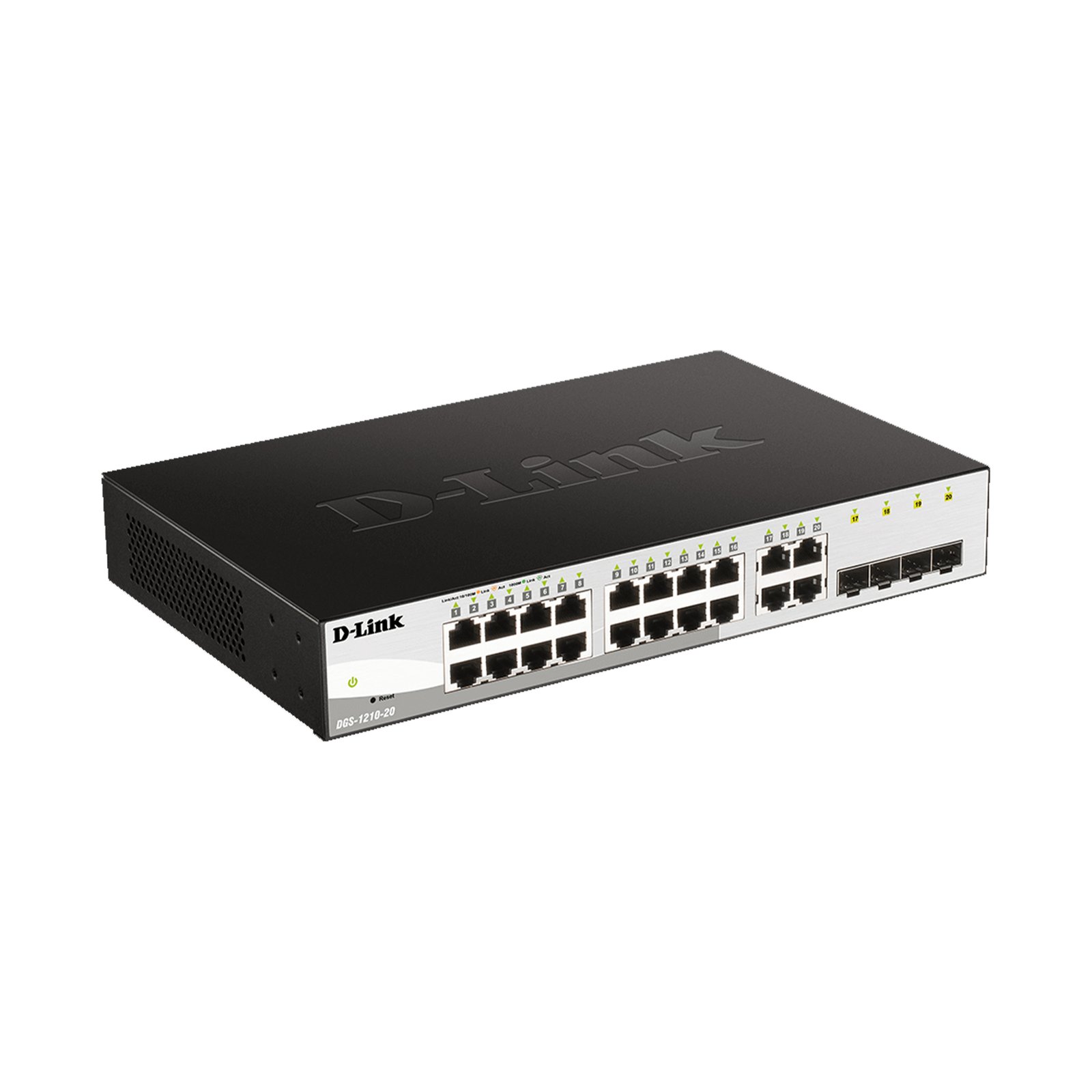

DGS-1210-20 – 20-Port Gigabit Smart Managed Switch, Fanless, Combo SFP Ports
EGP6,160
| Form Factor | Desktop/Rackmount |
|---|---|
| Switch Ports | 20 Ports (16 Gigabit Ethernet, 4 Combo SFP) |
| Port Speed | 10/100/1000 Mbps |
| Power Input | AC: 100-240V |
| PoE Support | Not Supported |
| Bandwidth | 40 Gbps |
| Layer | Layer 2 |
| VLAN Support | Supported |
| Management Type | Smart Managed |
| Power Saving Features | Energy-Efficient Ethernet (EEE), Power Saving by Link Status |
| Transmission Method | Store-and-forward |
Short Description:
The DGS-1210-20 is a 20-Port Gigabit Smart Managed Switch with 16 Gigabit Ethernet ports and 4 Combo SFP ports. It features Energy-Efficient Ethernet (EEE), fanless design, and advanced management capabilities, making it ideal for scalable and efficient networking.
The DGS-1210-20 is a 20-Port Gigabit Smart Managed Switch, designed for advanced network environments requiring intelligent and scalable management. It includes 16 x 10/100/1000BASE-T ports and 4 Combo 10/100/1000BASE-T/SFP ports for flexible fiber or copper connections. The switch supports features such as IEEE 802.3az Energy-Efficient Ethernet (EEE), Auto MDI/MDIX, and Quality of Service (QoS) to ensure efficient data handling. With a switching capacity of 40 Gbps and fanless design, the switch provides high-speed networking while operating silently, ideal for noise-sensitive areas.
Key Features Include:
- 20 Gigabit Ports: Includes 16 Gigabit Ethernet ports and 4 Combo SFP ports for flexible networking.
- Energy Efficiency: Supports Energy-Efficient Ethernet (EEE) to optimize power consumption.
- Fanless Design: Silent operation suitable for environments that require low noise.
- Switching Capacity: 40 Gbps ensures smooth data handling for high-volume network traffic.
- Advanced Management: Smart managed features, such as VLANs, QoS, and Link Aggregation, provide control over network configurations.
Specification Sheet: DGS-1210-20
| Model | DGS-1210-20 |
|---|---|
| Interfaces | 16 x 10/100/1000BASE-T ports, 4 x Combo 10/100/1000BASE-T/SFP ports |
| Switching Capacity | 40 Gbps |
| Max. Packet Forwarding Rate | 29.8 Mpps |
| Packet Buffer Size | 4.1 Mbits |
| Power Input | AC 100-240 V |
| Power Consumption | 13.02W (240V), 13.08W (100V) |
| Standby Power Consumption | 5.56W (240V), 5.47W (100V) |
| MTBF | 1,087,100 hours |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Operating Humidity | 0% to 95% RH |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Humidity | 0% to 95% RH |
| Dimensions | 280mm × 180mm × 44mm |
| Weight | 1.75 kg |
| Fan | Fanless |
| Forwarding Method | Store-and-forward |
| Maximum Heat Dissipation | 44.62 BTU/hr (100V), 44.41 BTU/hr (240V) |
| Form Factor | Desktop, Rackmount |
|---|---|
| Switch Ports | 20 Ports (16 Gigabit Ethernet, 4 Combo SFP) |
| POE Ports | Not Supported |
| Port Speed | 1Gbps (10-100-1000Mbps) |
| PoE Support | Not Supported |
| PoE Power Output | N/A |
| Bandwidth | 40 Gbps |
| Layer | Layer 2 |
| VLAN Support | Not Supported |
| Management Type | Smart Managed |
| Transmission Distance | Standard Ethernet Distance |
