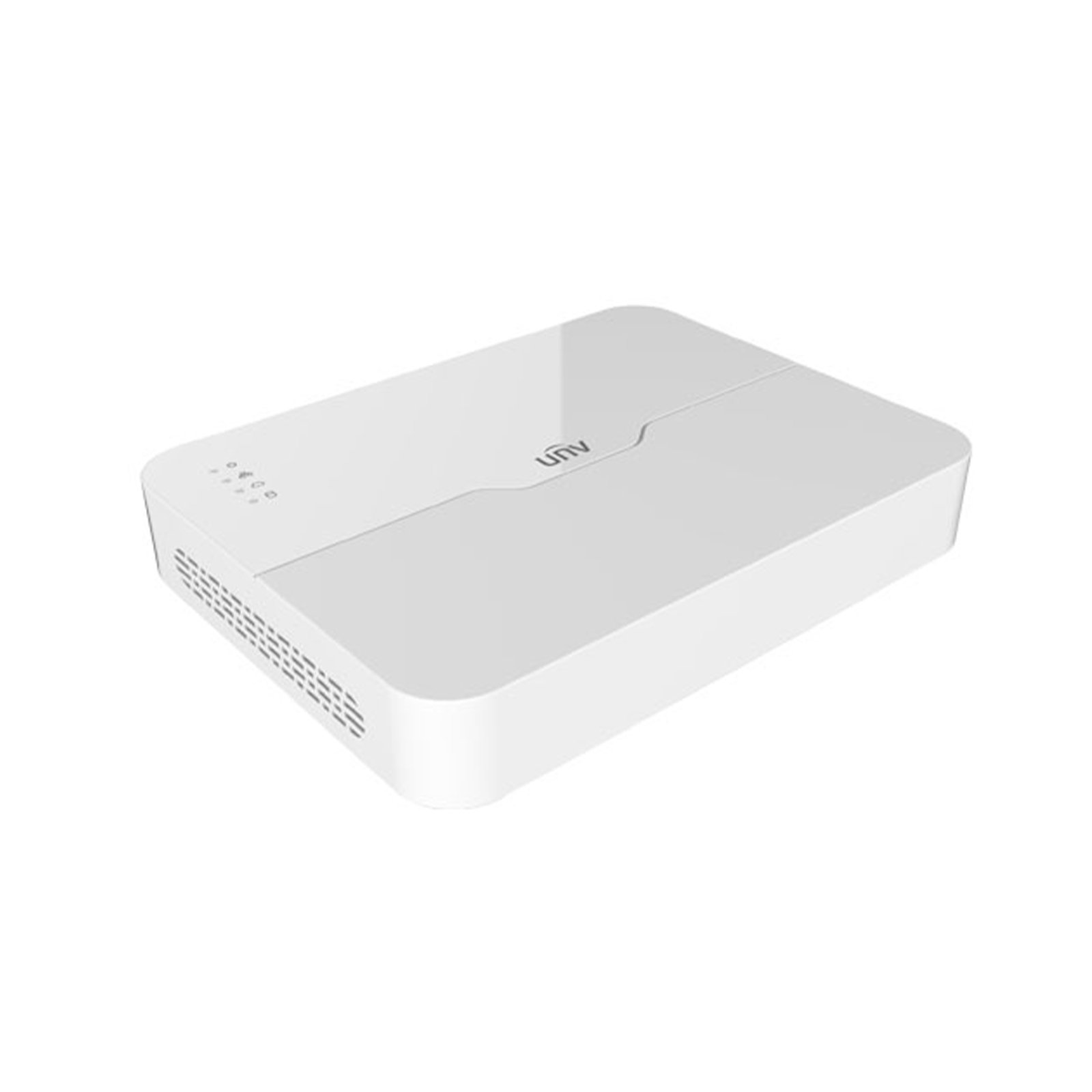

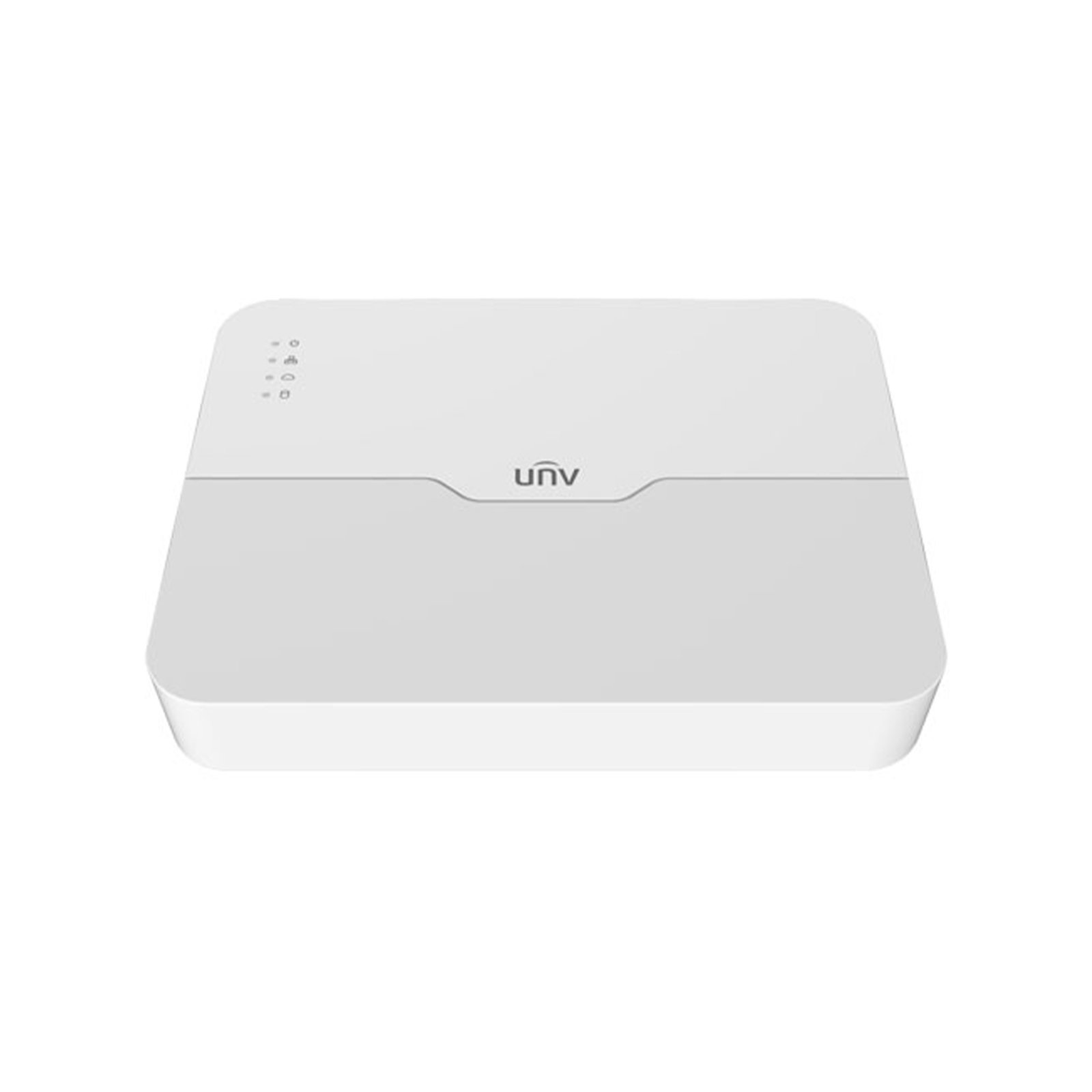

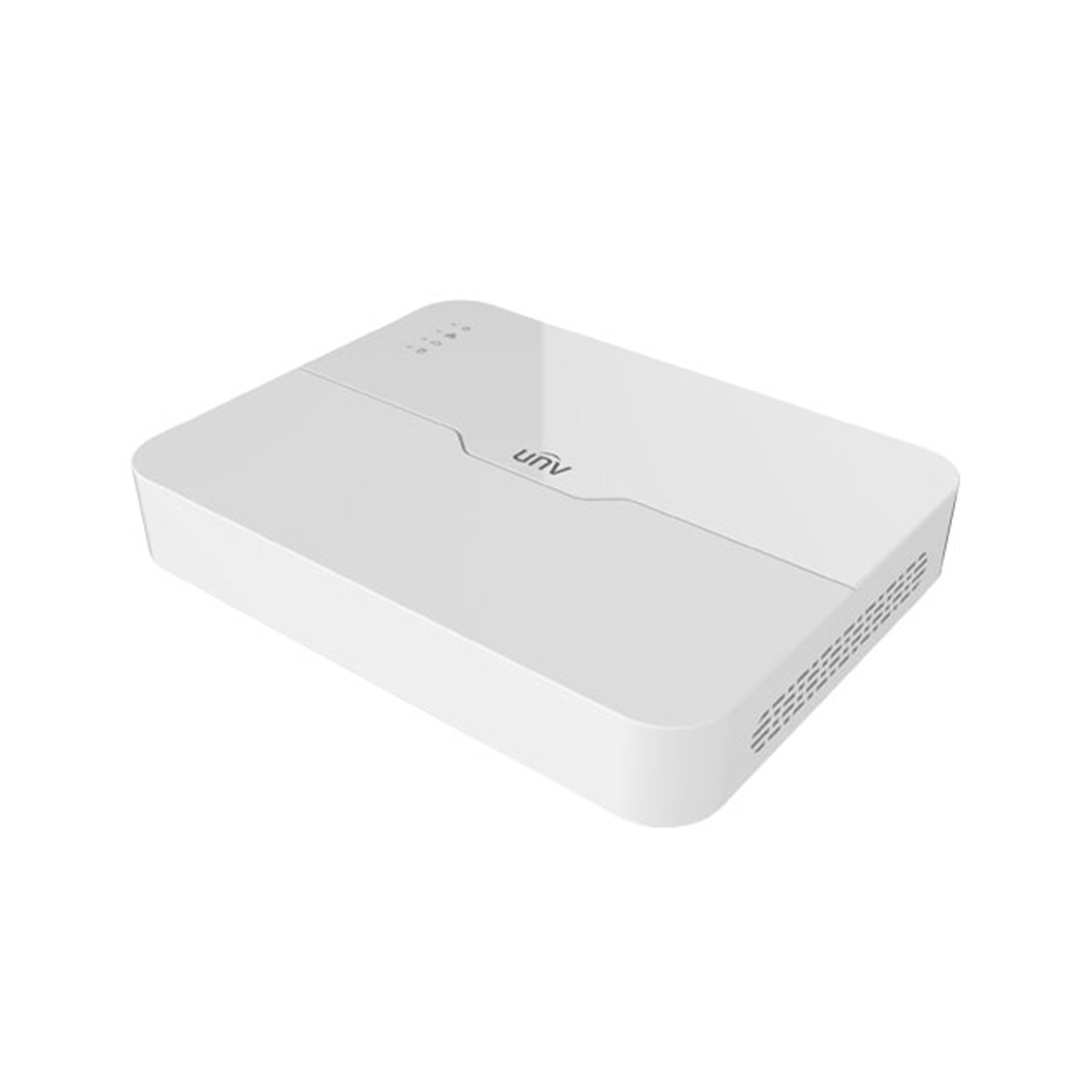

NVR301-08LS3-P8 – 8-ch 1-SATA Ultra 265/H.265/H.264 NVR with PoE Support
EGP5,590
Brand:
Uniview
NVR301-08LS3-P8
| Device Type | NVR (Network Video Recorder) |
|---|---|
| Device Channels/Ports | 8 Channels |
| Compression Technology | Ultra 265/H.265/H.264 |
| Device Signal Transmission | IP (Internet Protocol) |
| Device Storage | 1 SATA |
... people are viewing this right now
The NVR301-08LS3-P8 is a high-performance 8-channel Network Video Recorder (NVR) that supports multiple video compression formats, including Ultra 265, H.265, and H.264. It provides up to 4K resolution recording and offers simultaneous HDMI and VGA output. The device includes 8 independent PoE ports, making installation simple by providing both power and data transmission over a single cable. It is compatible with mainstream IP cameras adhering to ONVIF Profiles S, G, T, and RTSP protocols. With 1 SATA HDD for storage, it supports up to 10TB, making it ideal for medium to large surveillance setups.
Key Features Include:
- Video Compression: Supports Ultra 265, H.265, H.264 formats.
- 8-Channel Input: Supports up to 8 IP cameras.
- PoE Support: 8 independent PoE interfaces, allowing for easy plug-and-play setup.
- 4K HDMI Output: HDMI supports resolutions up to 3840×2160/30Hz.
- SATA HDD: 1 SATA interface, supporting up to 10TB.
- ONVIF Compatibility: Compatible with ONVIF Profiles S, G, T and RTSP protocols.
- Smart Detection: Includes Face Detection, Intrusion Detection, Cross Line Detection, and Ultra Motion Detection (UMD).
- Cloud Upgrade Support: Remote upgrade capabilities.
| Category | Description |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 users |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Browser Support (Plugin) | Windows: IE10/11, Firefox 52+, Chrome 45+, Edge 79+ |
| Video/Audio Input | 8 channels |
| Video/Audio Output | |
| HDMI Output | 4K (3840x2160) @30Hz, 1920x1080 @60Hz |
| VGA Output | 1920x1080 @60Hz, 1280x720 @60Hz |
| RCA Audio Output | 1 channel |
| Live View Display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Snapshot | 1 channel snapshot, up to D1 resolution |
| Recording | |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 1080P, 720P, D1 |
| Synchronous Playback | 8 channels |
| Smart Features | |
| VCA Detection by Camera | Face Detection, Intrusion Detection, Cross Line Detection, Enter/Leave Area, Ultra Motion Detection (UMD) |
| VCA Search | Behavior Search |
| Smart by IPC | 4 channels (Face Detection, SIP, UMD) |
| Alarm Features | |
| General Alarm | Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Low Disk Space, Disk Full, Recording/Snapshot Abnormal |
| Languages | 21 languages: Chinese, English, French, Spanish, Arabic, Portuguese, German, Russian, etc. |
| Hard Disk | |
| SATA | 1 SATA Interface |
| HDD Capacity | Up to 10TB per HDD |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Ports | 2 x USB 2.0 (rear panel) |
| RS232/RS485 | N/A |
| Alarm In/Out | N/A |
| Power Supply | DC 52V/1.8A |
| PoE Ports | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power (PoE) | Max 30W per port, Max 75W total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment | -10°C to 55°C (14°F to 131°F), Humidity ≤90% RH (non-condensing) |
| Power Consumption | ≤ 9W (without HDD) |
| Dimensions (W×D×H) | 270mm × 205mm × 46mm (10.6" × 8.1" × 1.8") |
| Weight (without HDD) | ≤ 0.8kg (1.76lb) |
| Certification | CE, FCC, UL, RoHS, WEEE |
| Device Type | NVR (Network Video Recorder) |
|---|---|
| Device Resolution | 8MP |
| Device Channels/Ports | 8 Channels |
| Compression Technology | Ultra 265/H.265/H.264 |
| Device Signal Transmission | IP (Internet Protocol) |
| Device Storage | 1 SATA |
