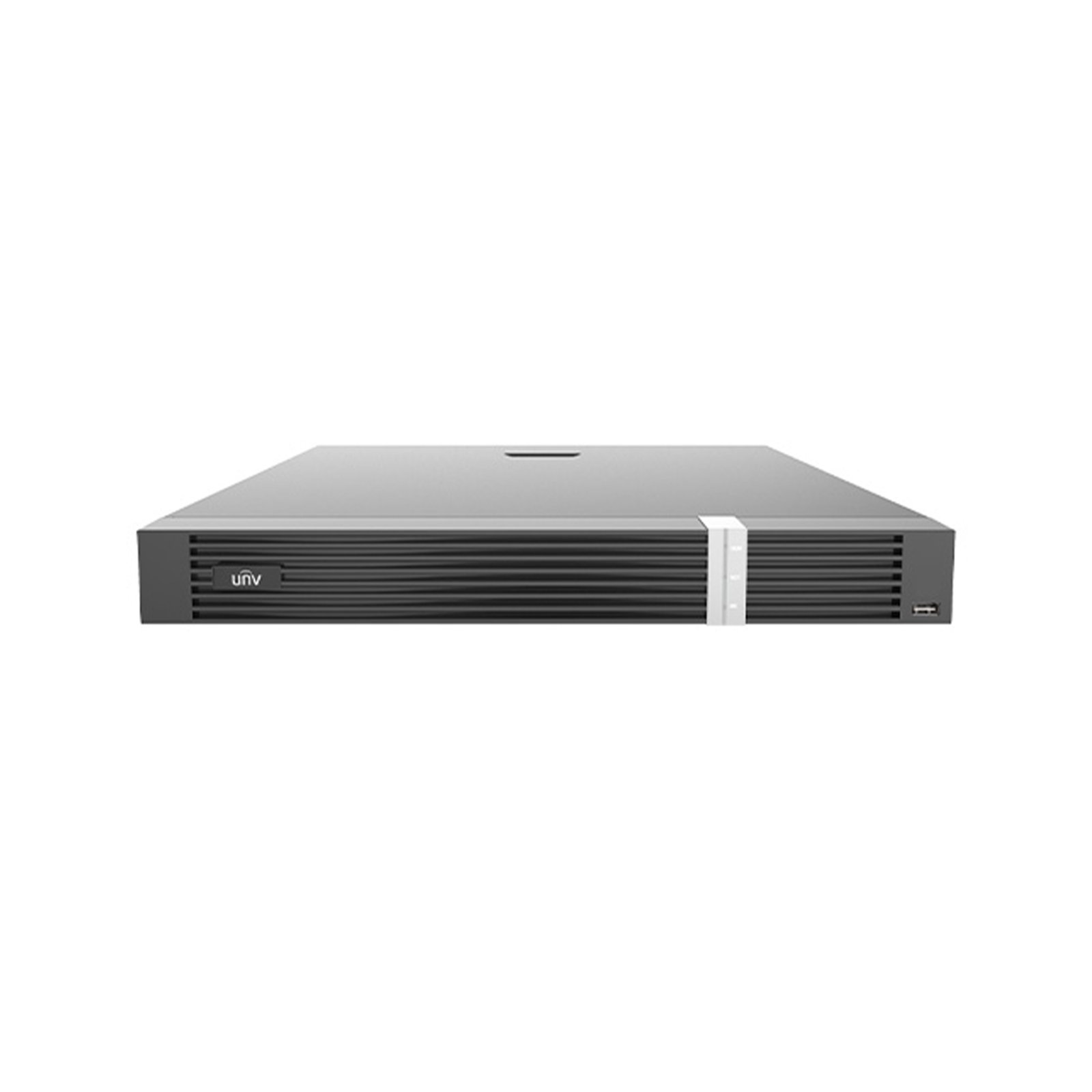

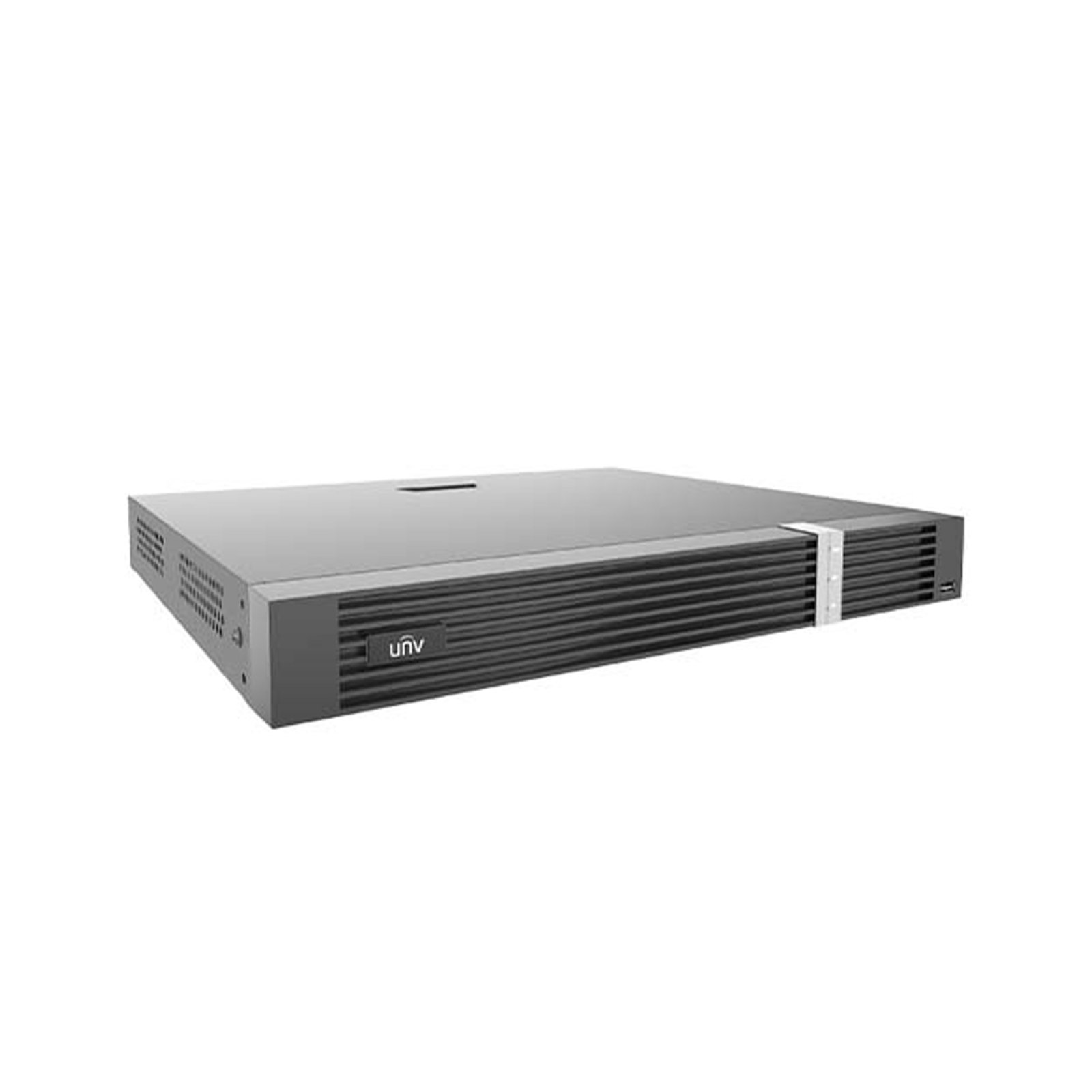

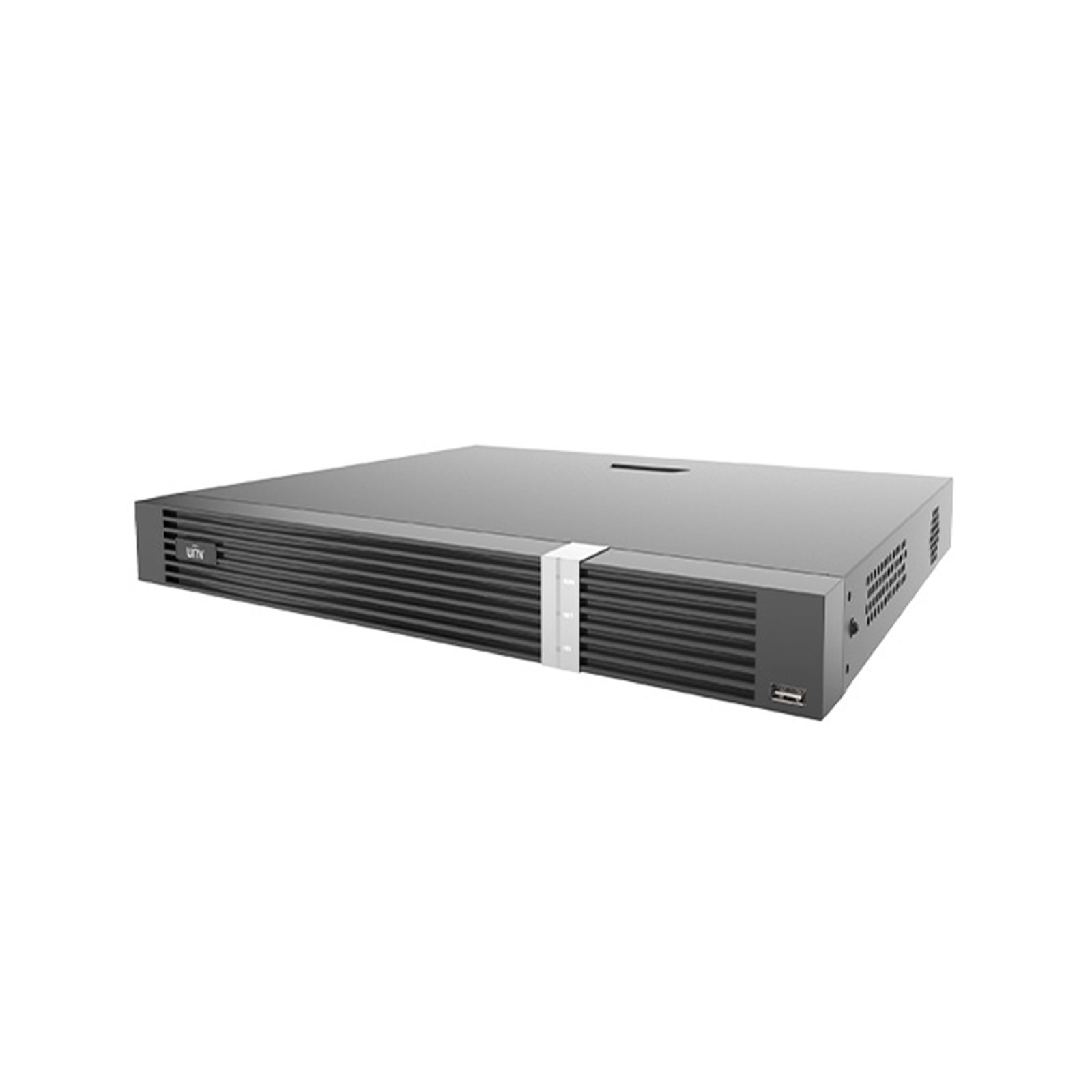

NVR UNV 302-16E2-IQ – 16-Channel, Ultra H.265, H.265, H.264 Support, 12MP Recording, 2 SATA HDD

The NVR UNV 302-16E2-IQ is a versatile 16-channel Network Video Recorder (NVR), designed to support high-quality video surveillance with Ultra H.265, H.265, and H.264 video compression formats. With a recording resolution of up to 12MP, it provides crystal-clear video output via HDMI (4K) and VGA. This NVR supports smart features like Intrusion Detection, Cross Line Detection, People Counting, and Ultra Motion Detection (UMD), ensuring advanced monitoring and security. It comes equipped with 2 SATA HDD bays, each supporting up to 8TB, ensuring ample storage for long-term video recording. ANR technology enhances storage reliability in case of network failure.

Key Features Include:

• Video Compression: Supports Ultra H.265, H.265, and H.264.
• Channels: 16-channel IP Video Input.
• Recording Resolution: Up to 12 Megapixels.
• Outputs: Supports 1-ch HDMI (up to 4K) and 1-ch VGA.
• Storage: 2 SATA HDDs, up to 8TB for each HDD.
• Smart Features: Supports Intrusion Detection, Cross Line Detection, People Counting, and Ultra Motion Detection.
• Bandwidth: 320Mbps Incoming, 320Mbps Outgoing.
• Remote Users: Supports up to 128 Remote Users.
• Alarm Inputs/Outputs: 8 Alarm Inputs and 2 Alarm Outputs.
• Power Supply: 12VDC/3.3A, with power consumption of ≤ 12W (without HDD).
• Operating Environment: From -10°C to +55°C.
