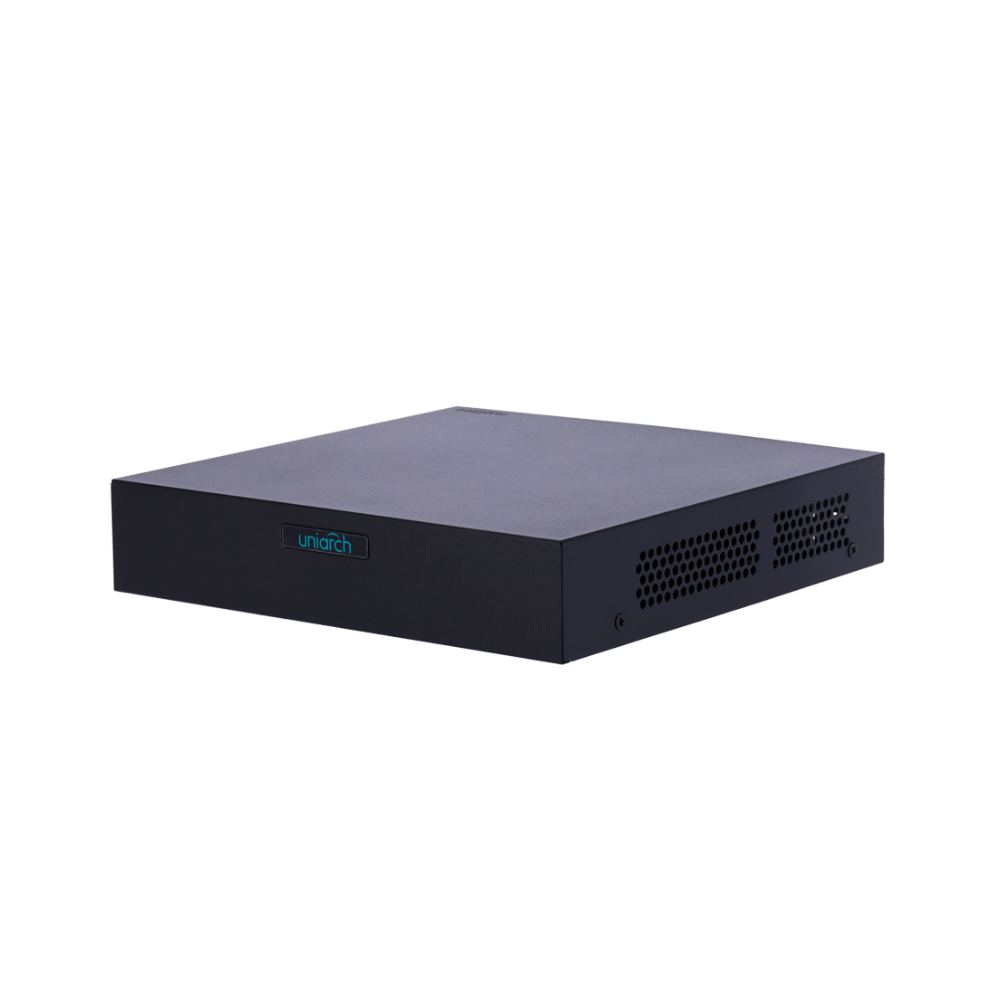

NVR-108S3-P8 – 8-Channel NVR with PoE, Ultra 265/H.265/H.264 Support, Recording Resolution: 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
EGP3,680
Brand:
Uniarch
UNIARCH NVR-108S3-P8
| Device Type | NVR (Network Video Recorder) |
|---|---|
| Device Resolution | 6MP |
| Device Channels/Ports | 8 Channels (IP Video Input) with PoE |
| Max IP Video Input | 8 IP channels, each up to 6MP |
| Compression Technology | Ultra 265/H.265/H.264 |
| Device Signal Transmission | IP (Internet Protocol) |
| Device Storage | 1 SATA (supports up to 6TB) |
... people are viewing this right now
The UNIARCH NVR-108S3-P8 is an advanced 8-channel NVR with built-in PoE capability, designed for IP cameras. It supports Ultra 265, H.265, and H.264 video compression, providing efficient bandwidth usage and optimized storage. With HDMI 4K and VGA output, the NVR can deliver clear video resolutions up to 3840×2160. This NVR is compatible with UNIVIEW and ONVIF IP cameras, making it a flexible option for diverse setups. It supports up to 6TB of storage on a single SATA HDD, and offers various remote access options through a web browser, smartphone app, or PC software.
Key Features Include:
- Multi-Format Video Compression: Supports Ultra 265, H.265, and H.264 for optimal storage and bandwidth management.
- PoE Support: Equipped with 8 independent PoE interfaces for seamless camera installation.
- High-Resolution Video Output: HDMI 4K and VGA outputs provide crisp, high-definition video.
- Recording Resolution: Supports recording at up to 6MP resolution.
- ONVIF Compatibility: Works with third-party IP cameras that conform to ONVIF standards.
- Remote Access: Allows monitoring and control via web browser, smartphone app, or PC software.
- Storage Capacity: Supports 1 SATA HDD up to 6TB.
| Model | NVR-108S3-P8 |
| Brand | Uniarch |
| IP Camera Input | 8-ch |
| Compatible Cameras | UNIVIEW, ONVIF |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Video/Audio Output | |
| HDMI Output | 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| VGA Output | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Audio Output | 1 RCA output |
| Synchronous Playback | 8-ch |
| Decoding Format | Ultra 265/H.265/H.264 |
| Decoding Capability | 1x4K@30fps, 1x5MP@30fps, 2x4MP@30fps, 4x3MP@25fps, 4x1080P@30fps |
| PoE Interface | 8 independent PoE network interfaces |
| Max PoE Power | Max 30W per port, Max 75W in total |
| External Backup | USB / HDD USB memory |
| Hard Disk | 1 SATA HDD (up to 6TB capacity) |
| Communication Ports | 2 x USB 2.0, 1 x RJ45 Ethernet (10M/100M) |
| Power Supply | DC 52V, 9W |
| Working Environment | -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 46mm × 195mm × 190mm (1.8" × 7.7" × 7.5") |
| Weight (without HDD) | 1kg (2.2 lb) |
| Device Type | NVR (Network Video Recorder) |
|---|---|
| Device Resolution | 6 MP |
| Device Channels/Ports | 8 Channels |
| Compression Technology | Ultra 265/H.265/H.264 |
| Device Signal Transmission | IP (Internet Protocol), PoE (Power over Ethernet) |
| Device Storage | 1 SATA |
