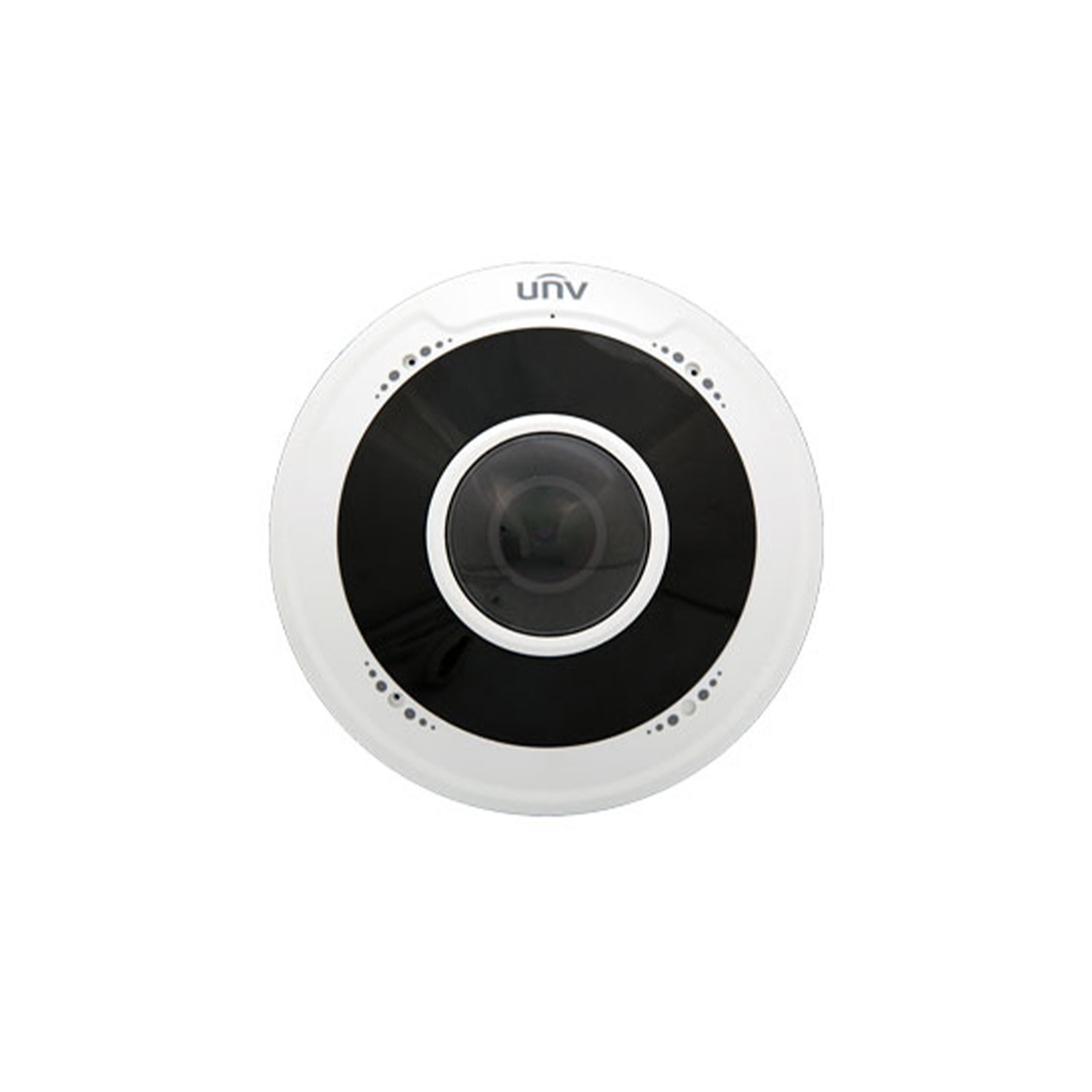

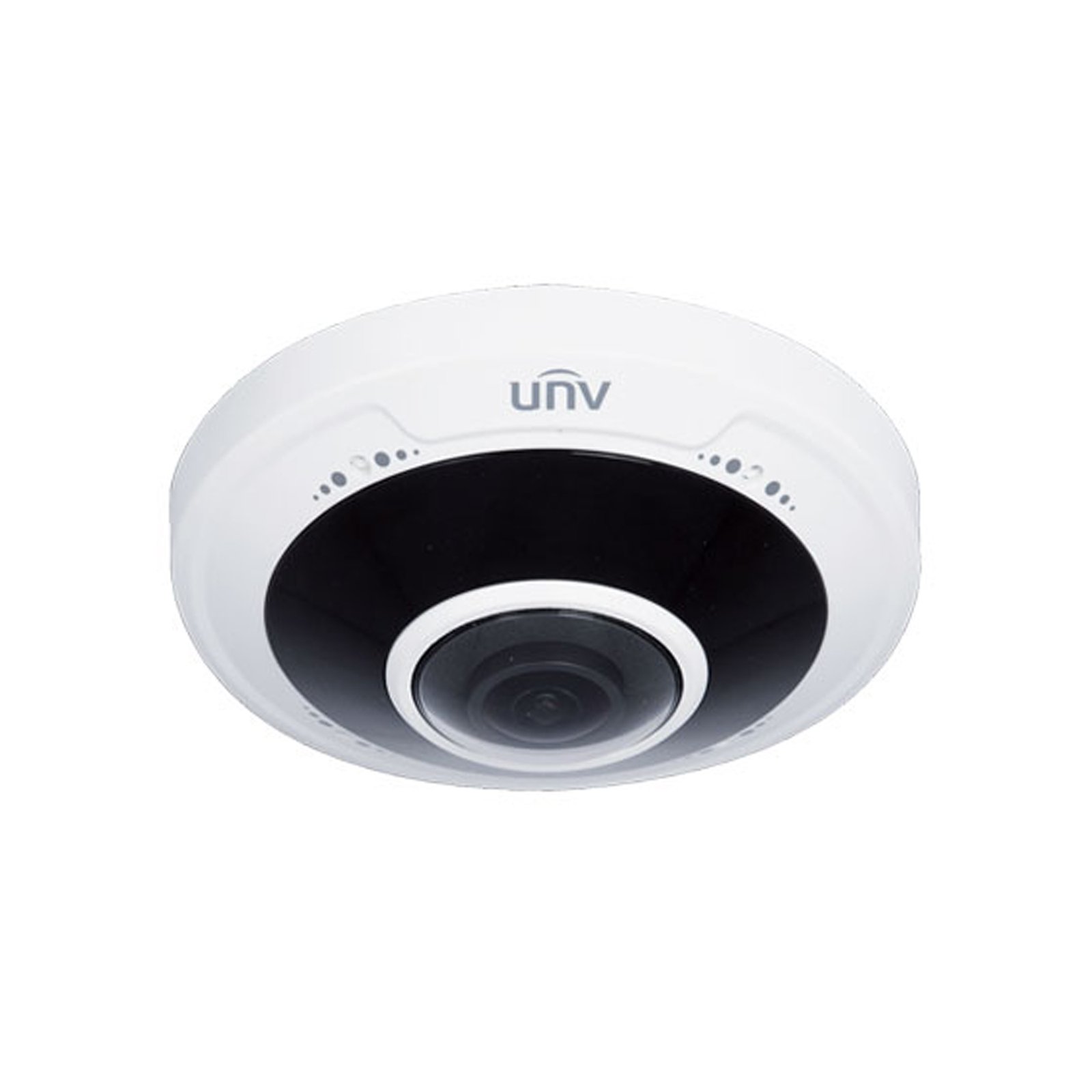

IPC815SB-ADF14K-I0 – 5MP Fisheye Fixed Dome Network Camera, 1.4mm Lens, 1/2.8″ CMOS Sensor, Built-in Dual Microphones, Smart IR, Supports 256GB Micro SD, IK10 & IP66 Protection
EGP9,425
Brand:
Uniview
IP CAMERA — IPC815SB-ADF14K-I0
| Camera Type | Fisheye Camera, IP Camera |
|---|---|
| Camera – Usage | Indoor Camera, Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Fisheye Lens |
| Focal Length | 1.4mm Lens |
| Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
| Smart Features | Behavior Detection, Built-in Dual Mic, Corridor Mode, IR-Cut filter, Motion Detection, Smart IR, TWDR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP66 |
Out of stock
... people are viewing this right now
The IPC815SB-ADF14K-I0 is a versatile 5MP Fisheye Fixed Dome Network Camera designed for comprehensive 360° surveillance coverage. It features a 1.4mm fixed lens that provides a 360° angle of view and is powered by a 1/2.8″ CMOS sensor, delivering 5MP resolution at 30fps. The camera supports advanced video compression technologies such as Ultra 265, H.265, H.264, and MJPEG, ensuring efficient bandwidth and storage usage. With 120dB true WDR, the camera delivers clear images even in high-contrast lighting environments. The built-in dual microphones allow for sound detection over longer distances, adding an additional layer of security. The camera supports Smart IR up to 10 meters (33ft) for night vision, and its rugged design includes IK10 vandal resistance and IP66 protection, making it ideal for indoor and outdoor applications. Additionally, the camera supports 256GB Micro SD card storage and PoE for simplified installation.
Key Features Include:
- High-Quality Imaging: 5MP resolution with 1/2.8″ CMOS sensor.
- 360° Fisheye Lens: 1.4mm fixed lens providing comprehensive coverage.
- Built-in Dual Microphones: Captures sound over long distances.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG.
- Smart IR: Night vision up to 10 meters (33 feet).
- 120dB WDR: Ensures clear images in challenging lighting conditions.
- Audio and Alarm I/O: Supports 1 in/1 out for both audio and alarm.
- Micro SD Card Support: Supports 256GB Micro SD storage for edge recording.
- PoE Support: Simplifies installation with Power over Ethernet.
- Rugged Protection: IK10 and IP66 ratings for indoor and outdoor use.
| Specification | IPC815SB-ADF14K-I0 |
| Camera | |
| Image Sensor | 1/2.8", 5.0 megapixel, progressive scan CMOS |
| Minimum Illumination | Colour: 0.01 lux (F2.0, AGC ON), 0 lux with IR |
| Day/Night | IR-cut filter for day & night function |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N Ratio | >55dB |
| Lens | |
| Lens Type | 1.4mm@F2.0, fixed lens |
| Angle of View | 360° |
| DORI Distance | |
| Detect (m) | 31.5m (103.3ft) |
| Observe (m) | 12.6m (41.3ft) |
| Recognize (m) | 6.3m (20.7ft) |
| Identify (m) | 3.2m (10.5ft) |
| Illuminator | |
| IR Range | Up to 10m (33ft) |
| IR Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2592x1944) @ 30fps, Sub Stream: 1080P (1920x1080) @ 30fps, Third Stream: D1 (720x576) @ 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Statistical Analysis | Heat map |
| Basic Detection | Motion detection, tampering alarm, audio detection |
| General Functions | Watermark, IP filtering, Tampering Alarm, Alarm input/output, RTSP authentication |
| Audio | |
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Supported |
| Audio Suppression | Supported |
| Sampling Rate | 8KHz |
| Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Compatible Integration | ONVIF (Profile S, G, T), API, SDK |
| Certifications | CE, FCC, UL |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 8.5W |
| Dimensions (Φ × H) | Φ125 × 43.7mm (Φ4.9" × 1.7") |
| Weight | 0.36kg (0.79lb) |
| Material | Metal + Plastic |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Material | Metal |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Camera Type | Fisheye Camera, IP Camera |
|---|---|
| Camera - Usage | Indoor Camera, Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Fisheye Lens |
| Focal Length | 1.4mm Lens |
| Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
| Smart Features | Behavior Detection, Built-in Dual Mic, Corridor Mode, IR-Cut filter, Motion Detection, Smart IR, TWDR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP66 |
