IPC3613LB-AF28K-G – 3MP HD IR Eyeball Network Camera, Lens 2.8mm, 1/2.7″ CMOS Sensor, Supports Micro SD , Built in Mic
EGP1,660
Brand:
Uniview
IP CAMERA –IPC2322LB-ADZK-G
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, Behavior Detection, Built in Speaker, Built-in Microphone, Corridor Mode, IR-Cut filter, Motion Detection, Smart IR, TWDR, Two-Way Audio |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
Out of stock
... people are viewing this right now

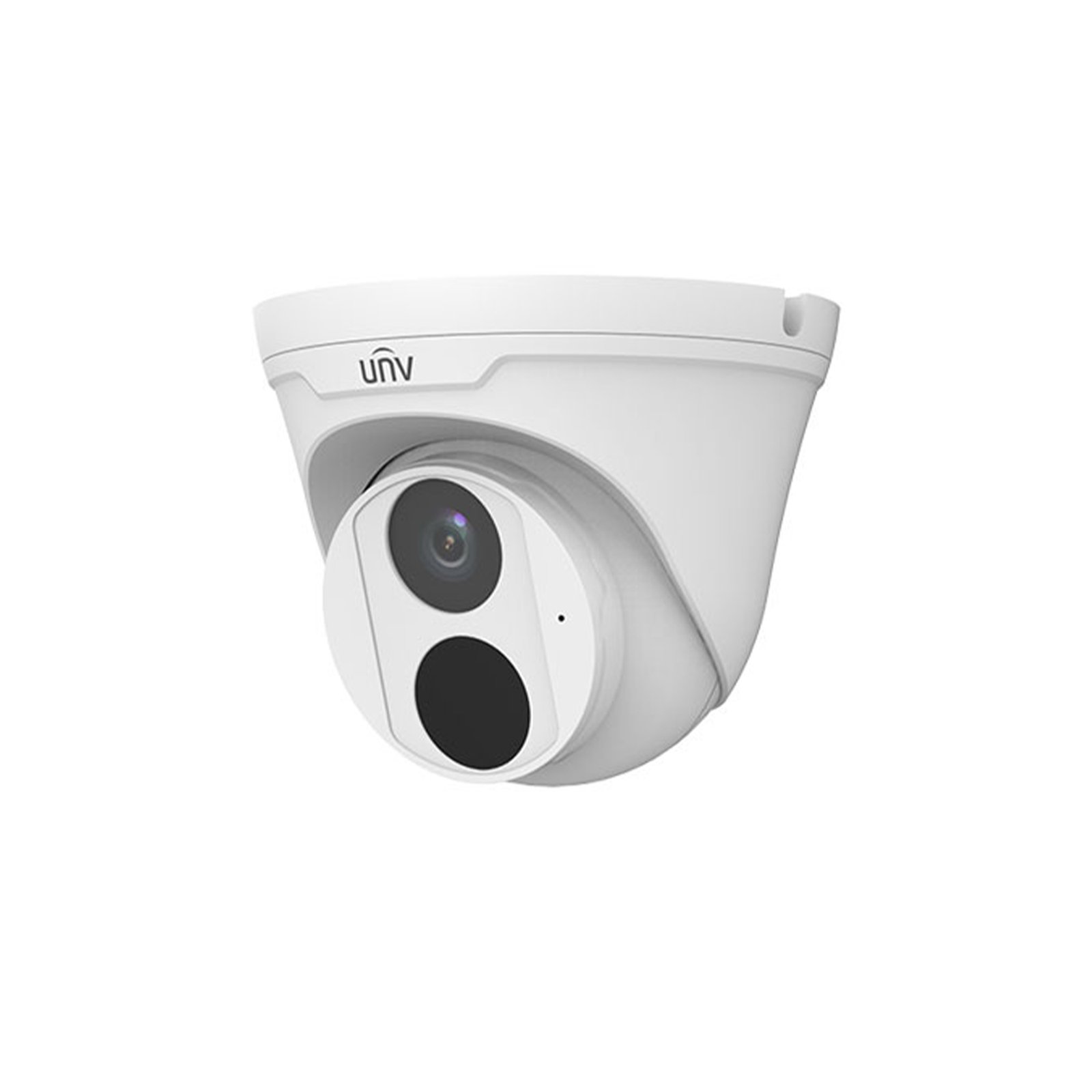

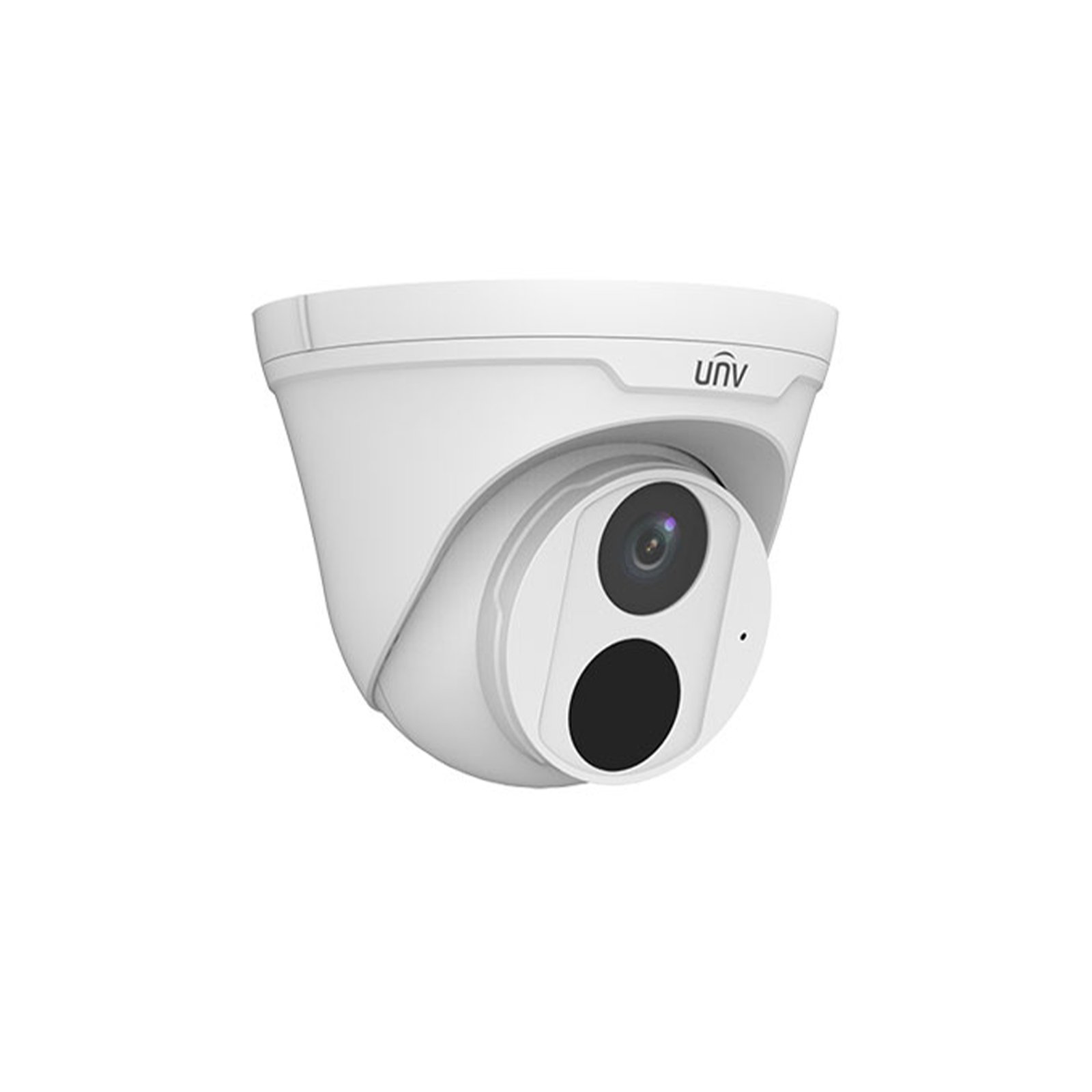

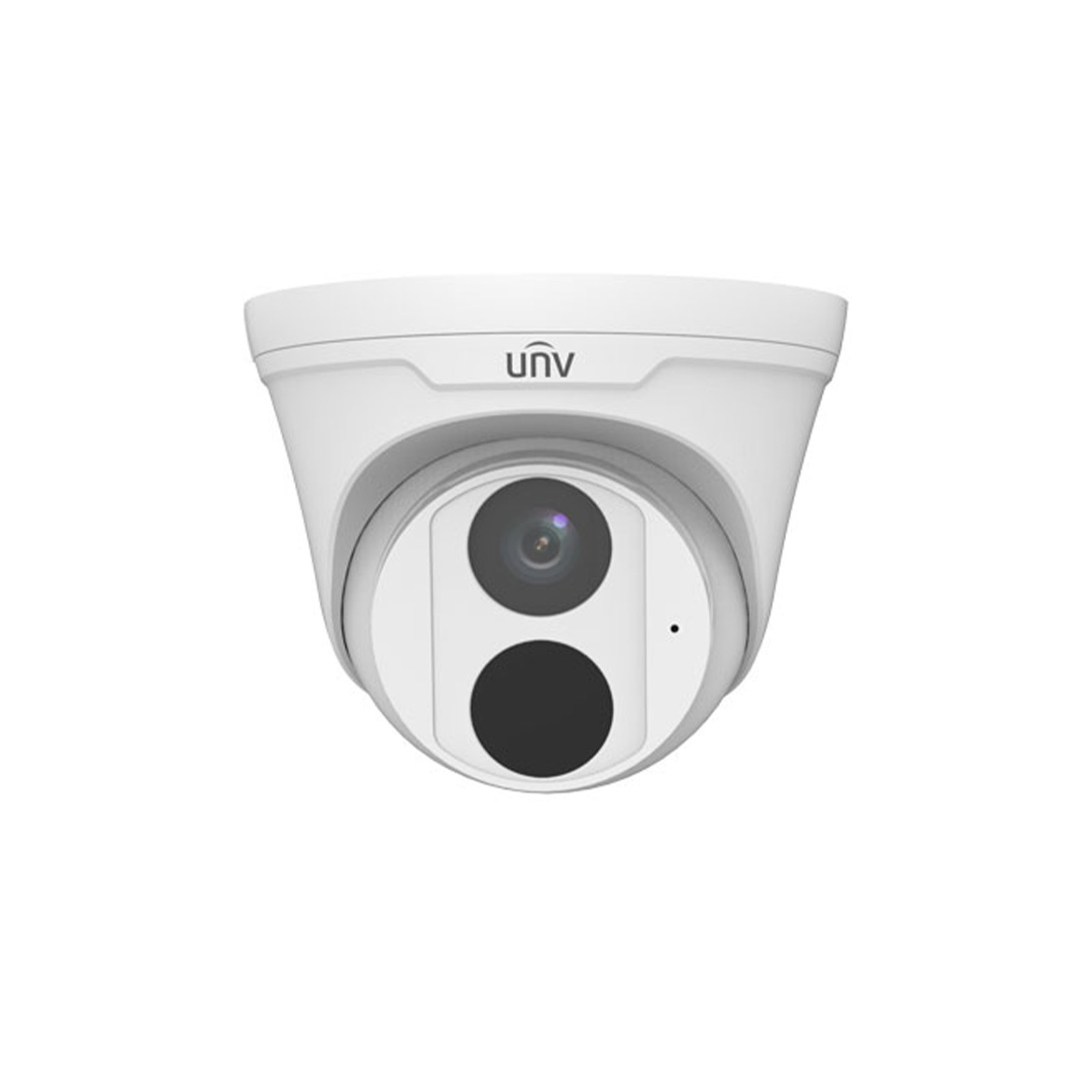

The IPC3613LB-AF28K-G is a versatile 3MP HD IR Eyeball Network Camera designed for high-quality surveillance in various environments. It features a 1/2.7″ 3.0 megapixel progressive scan CMOS sensor that delivers sharp 3MP resolution at 30/25fps. The camera supports advanced video compression formats such as Ultra 265, H.265, H.264, and MJPEG, optimizing storage and bandwidth usage without sacrificing image quality. The camera includes Smart IR technology for clear night vision up to 30 meters (98 feet) and has a built-in microphone for audio recording.
Equipped with a 2.8mm fixed lens, the camera provides a 112.9° horizontal field of view, ideal for monitoring wide areas. It supports 9:16 Corridor Mode for efficient coverage of hallways and narrow spaces. Additional features include 2D/3D digital noise reduction, day/night functionality with an IR-cut filter, and DWDR (Digital Wide Dynamic Range) for improved image clarity in challenging lighting conditions. The camera’s IP67-rated weatherproof design ensures durability in harsh environments, while the 3-axis adjustment allows for flexible installation. PoE support simplifies installation by combining power and data transmission over a single cable.
Key Features Include:
- High-Quality Imaging: 3MP resolution with a 1/2.7″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats.
- Smart IR: Provides up to 30m (98ft) IR distance for enhanced night vision.
- Digital Noise Reduction: 2D/3D DNR for superior image clarity.
- Day/Night Functionality: IR-cut filter with auto switch for optimal performance in varying light conditions.
- Wide Dynamic Range: DWDR technology for balanced exposure in challenging lighting.
- Audio Functionality: Built-in microphone for audio recording.
- Expandable Storage: Supports Micro SD card up to 128GB for local storage.
- Robust Protection: IP67 rating for outdoor use.
- Power over Ethernet (PoE): Simplifies installation with PoE support.
- 3-Axis Adjustment: Allows for flexible installation and positioning.
| Specification | IPC3613LB-AF28K-G |
| Megapixel | 3 Megapixel |
| Sensor | 1/2.7", 3.0 megapixel, progressive scan, CMOS |
| Lens Type | Fixed-focal, 2.8mm and 4.0mm @ F2.0 |
| Lens Mount | M12 |
| Angle of View (H) | 112.9° (2.8mm), 91.2° (4.0mm) |
| Angle of View (V) | 59.1° (2.8mm), 47.9° (4.0mm) |
| Angle of View (O) | 121.2° (2.8mm), 95.9° (4.0mm) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON); 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N Ratio | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF (704288), Max 30fps; CIF (352288), Max 30fps
|
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZView, EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Certification | |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1, UL: UL60950-1, IEC 60950-1 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 7.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) |
| Weight | 0.30kg (0.66lb) |
| Material | Metal + plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Ingress Protection | IP67 |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ |
| Camera Type | Eyeball Camera, IP Camera |
|---|---|
| Camera - Usage | Indoor Camera, Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 3 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 2.8mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, DWDR, HLC, IR-Cut filter, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
