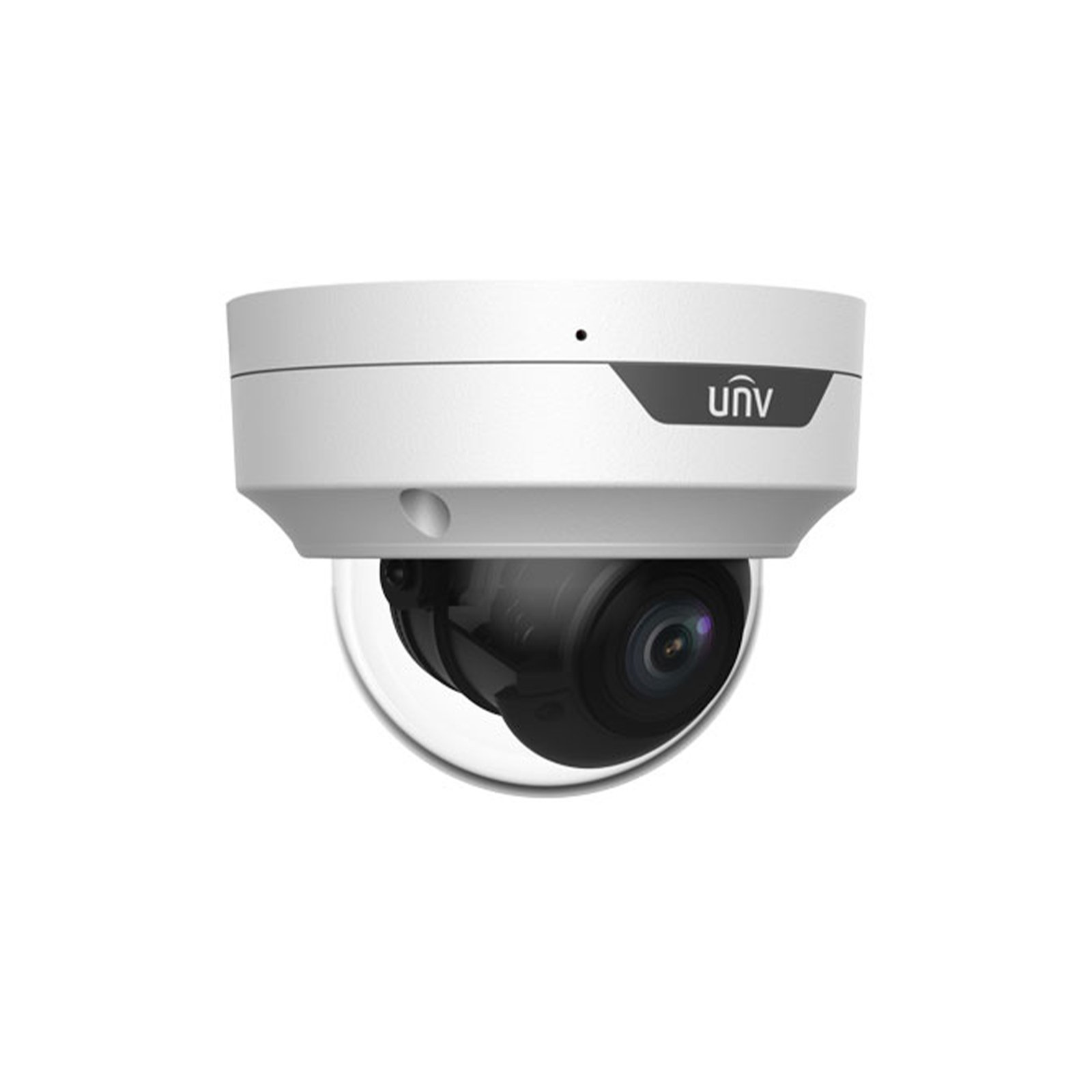

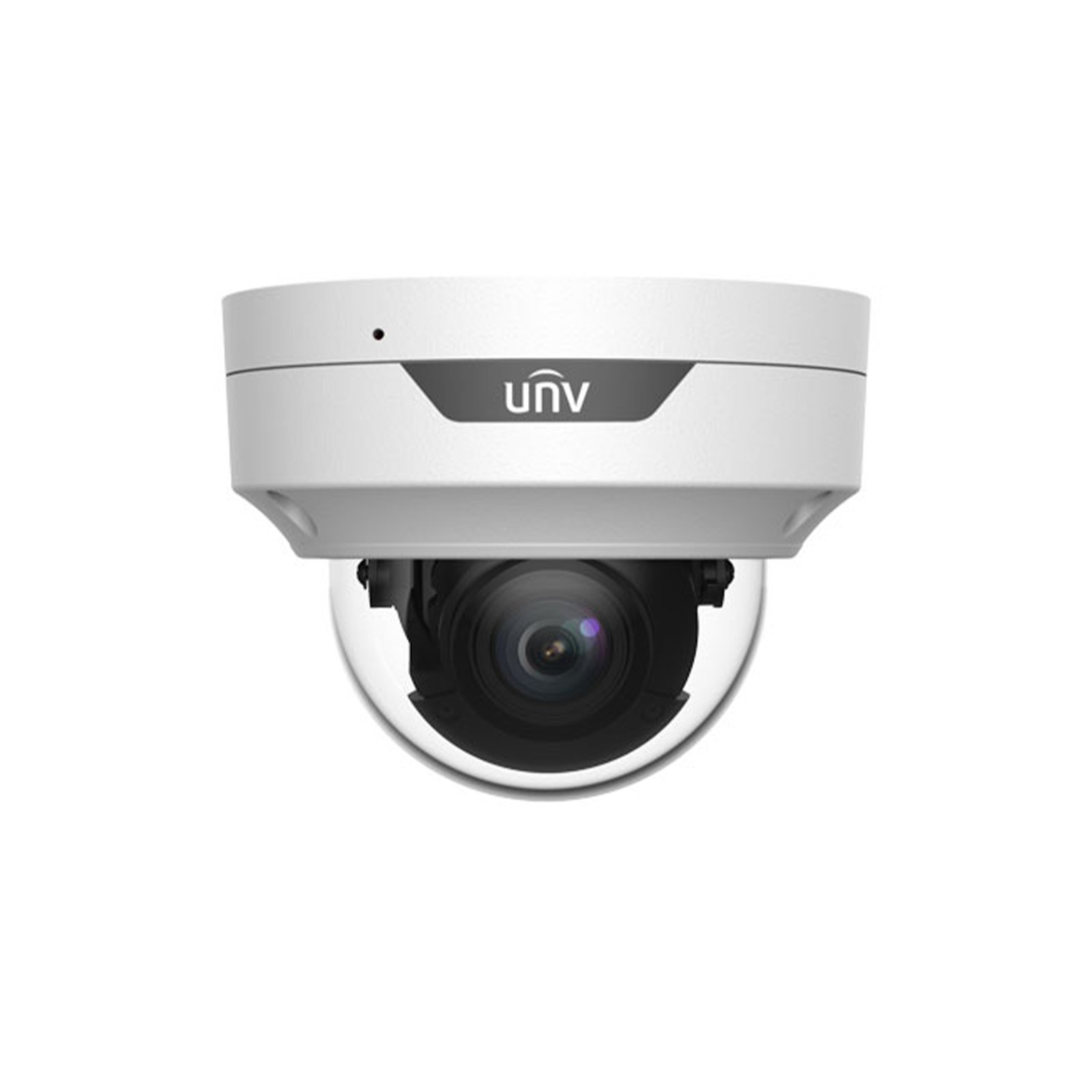

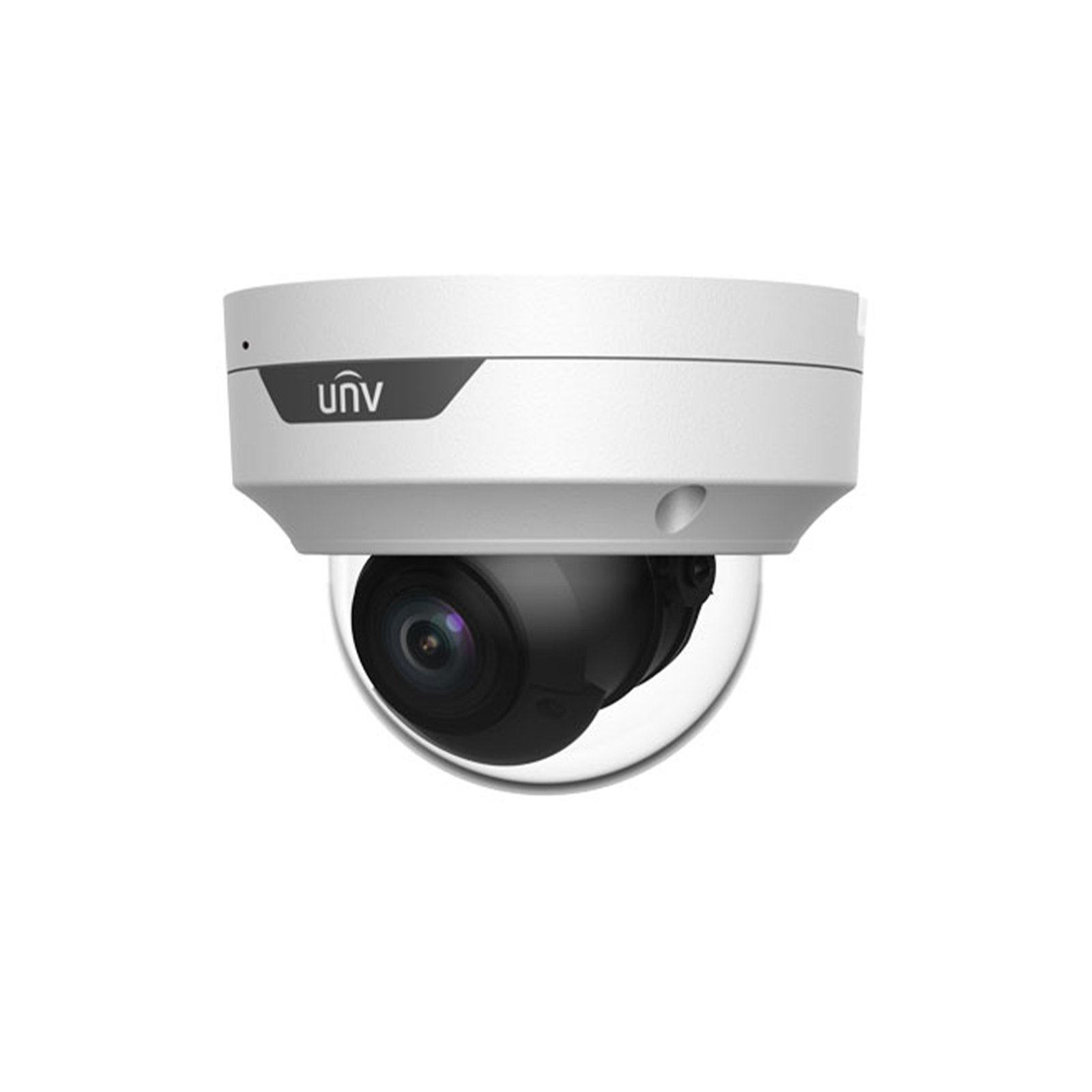

IPC3532LB-ADZK-G – 2MP HD IR VF Dome Network Camera, Lens 2.8~12mm, 1/2.7″ CMOS Sensor, AF Motorized Zoom Lens, Supports 128 G Micro SD Card
EGP4,225
Brand:
Uniview
IP CAMERA –IPC2322LB-ADZK-G
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, Behavior Detection, Built in Speaker, Built-in Microphone, Corridor Mode, IR-Cut filter, Motion Detection, Smart IR, TWDR, Two-Way Audio |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
... people are viewing this right now
The IPC3532LB-ADZK-G is a high-performance 2MP HD IR VF Dome Network Camera designed for versatile outdoor surveillance. It features a 1/2.7″ CMOS sensor that delivers high-quality 2MP resolution at 30/25fps. The camera supports advanced video compression formats like Ultra 265, H.265, H.264, and MJPEG, optimizing storage and bandwidth usage. With 120dB true WDR technology, it ensures clear imaging even in challenging lighting conditions. The Smart IR capability extends night vision up to 40 meters (131 feet), making it ideal for both day and night surveillance. The camera is equipped with a motorized zoom lens (2.8~12mm) with automatic focusing, allowing for flexible viewing angles from 108.05° to 32.59° horizontal field of view.
Additional features include 2D/3D digital noise reduction, IK10 vandal resistance, and IP67 weatherproof rating, ensuring durability in harsh environmental conditions. The camera also supports local storage with a Micro SD card slot up to 128 GB, providing flexible recording options. PoE support simplifies installation by combining power and data transmission over a single cable, making it a robust solution for modern security systems.
Key Features Include:
- High-Quality Imaging: 2MP resolution with a 1/2.7″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats.
- Smart IR: Provides up to 40m (131ft) IR distance for enhanced night vision.
- WDR Technology: 120dB true WDR for clear images in high-contrast lighting.
- Audio Functionality: Built-in microphone for audio capture.
- Motorized Zoom Lens: 2.8~12mm lens with automatic focusing and motorized zoom.
- Corridor Mode: Supports 9:16 Corridor Mode for optimized coverage in narrow spaces.
- Expandable Storage: Supports 128 G Micro SD card for local storage.
- Robust Protection: IP67 and IK10 ratings for outdoor use and vandal resistance.
- Power over Ethernet (PoE): Simplifies installation with PoE support.
- 3-Axis Adjustment: Allows for flexible installation and positioning.
| Specification | IPC3532LB-ADZK-G |
| Camera | |
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON); 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360° |
| S/N Ratio | >52dB |
| WDR | 120dB |
| Lens | |
| Lens Type | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| Lens Mount | Φ14 |
| Angle of View (H) | 108.05° ~ 32.59° |
| Angle of View (V) | 56.81° ~ 18.36° |
| Angle of View (O) | 111.91° ~ 36.53° |
| DORI Distance | Lens (mm) |
| 2.8 | |
| 12 | |
| Illuminator | |
| IR Range | Up to 40m (131ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~6144 kbps |
| U-code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZView, EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Certification | |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1, UL: UL60950-1, IEC 60950-1 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 7.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ128mm x 100mm (Ø5.0” x 3.9”) |
| Weight | 0.66kg (1.46lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ |
| Camera Type | Dome Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | Built in Speaker, Built-in Microphone, Corridor Mode, Defog, DNR, HLC, Privacy Masking, Region of Interest (ROI), Supports SD memory card, TWDR, Two-Way Audio, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
