IPC328LE-ADF28K-G – 4K HD Vandal-resistant IR Fixed Dome Network Camera, 2.8mm Lens, 1/2.7″ CMOS Sensor, Smart IR, Built-in Mic, Supports 256GB Micro SD, IP67 and IK10 Protection
EGP6,110
IP CAMERA — IPC328LE-ADF28K-G
| Camera Type | Dome Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 8 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 2.8mm Lens |
| Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
| Smart Features | Behavior Detection, Built-in Microphone, Smart Intrusion Prevention, Smart IR, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
... people are viewing this right now

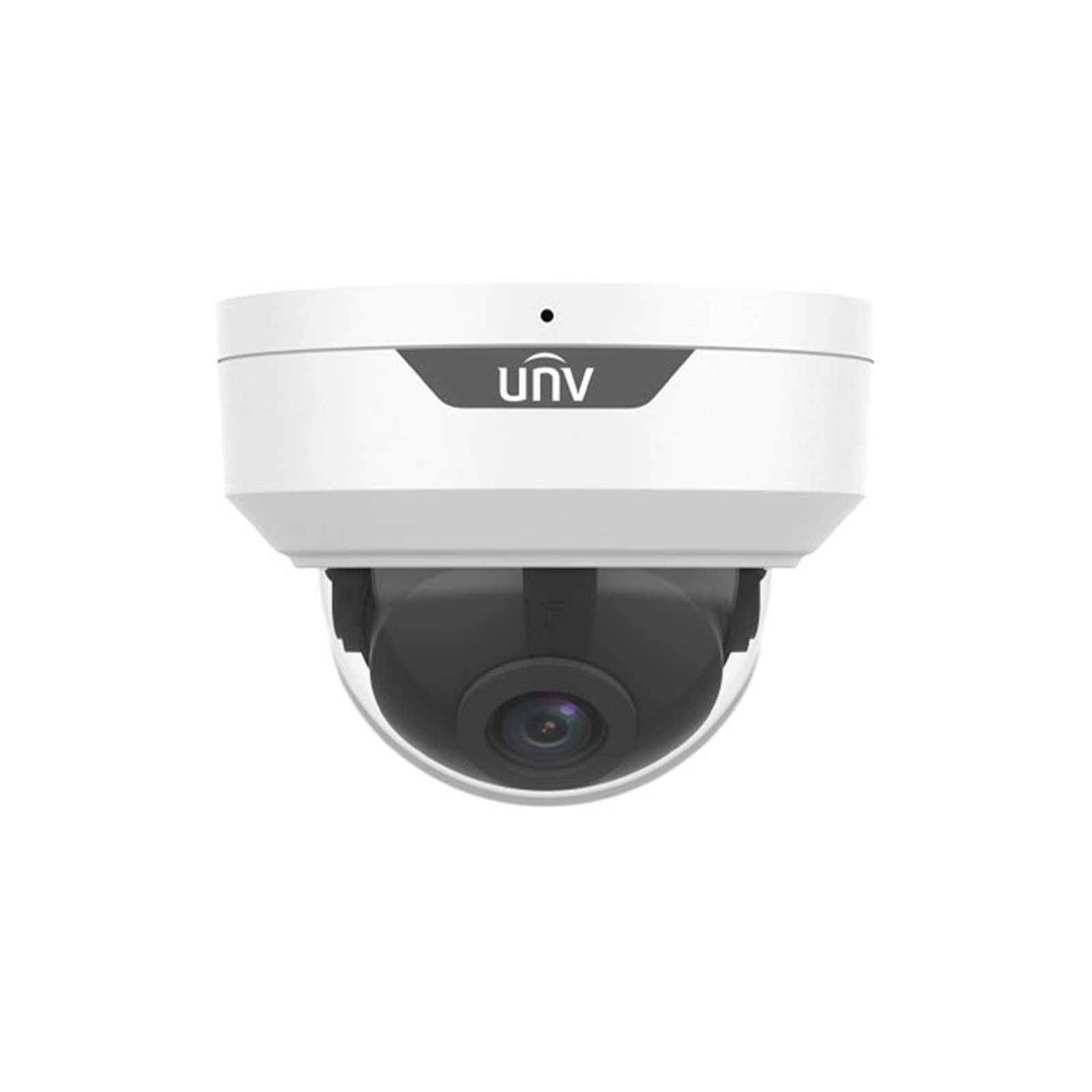

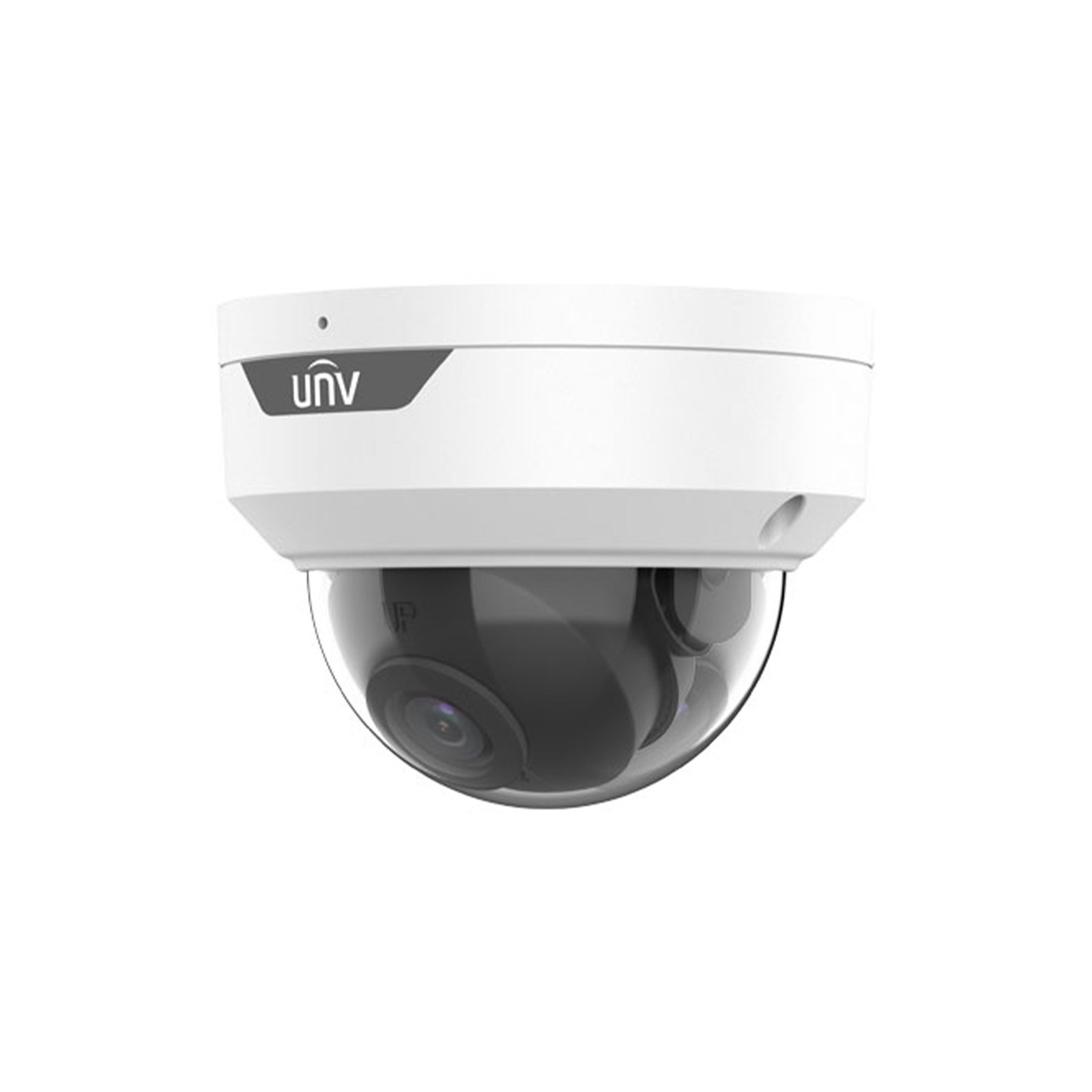

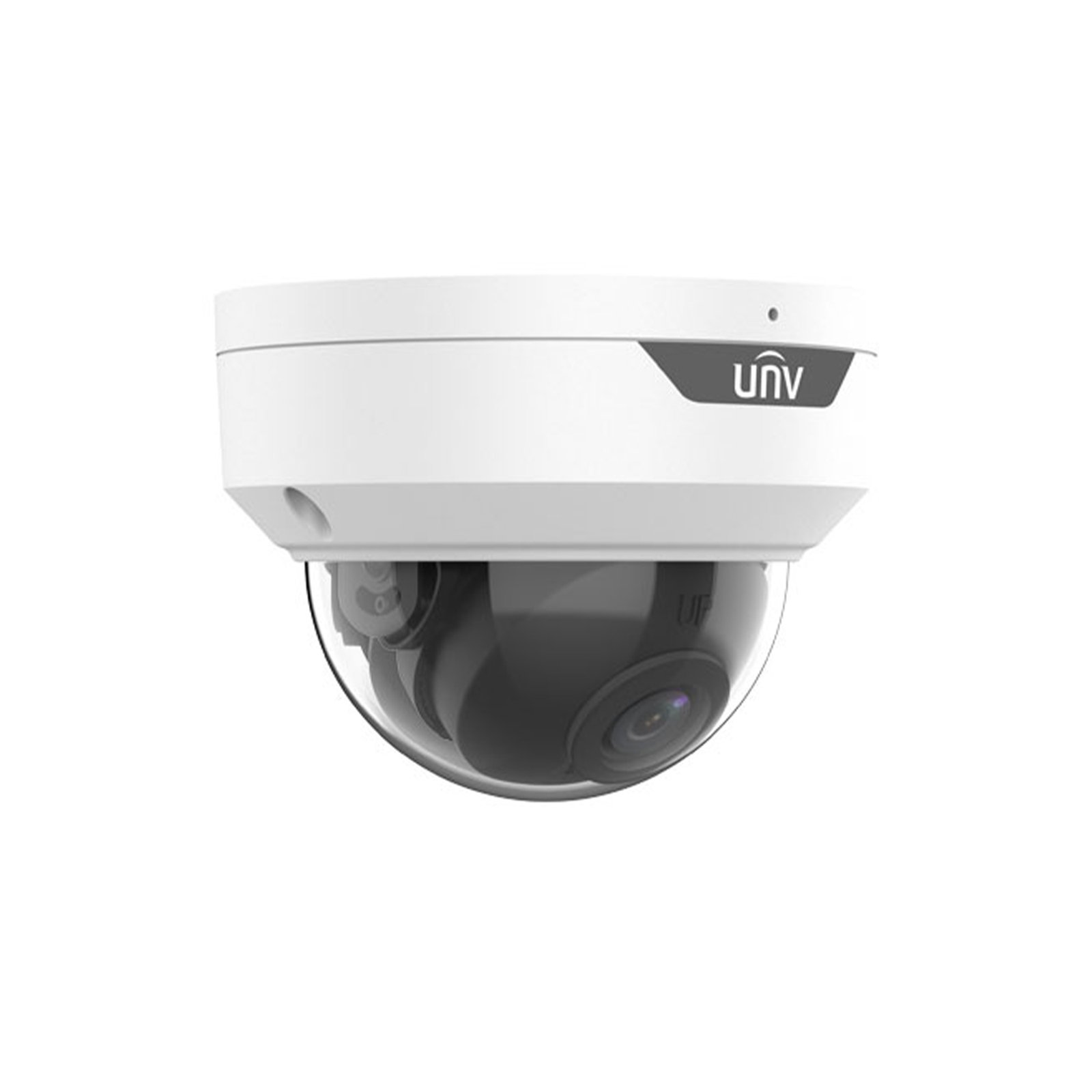

Description: The IPC328LE-ADF28K-G is a high-performance 4K Vandal-resistant Fixed Dome Network Camera featuring an 8MP resolution with a 1/2.7″ CMOS sensor. It supports Ultra 265, H.265, H.264, and MJPEG video compression, optimizing bandwidth and storage without compromising image quality. The camera ensures superior imaging even in low-light environments thanks to Easystar technology and 120dB true WDR. The built-in Smart IR illuminates up to 30 meters (98ft), providing excellent night vision. It also includes IK10 vandal resistance and IP67 protection, making it ideal for both indoor and outdoor installations. With PoE support and a built-in microphone, this camera is designed for easy installation and comprehensive surveillance.
Key Features Include:
- High-Quality Imaging: 8MP resolution with a 1/2.7″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, and H.264 formats.
- Smart IR: Provides up to 30m (98ft) IR distance for night vision.
- 120dB WDR: Ensures clear images in high-contrast lighting.
- Built-in Microphone: Captures audio for enhanced surveillance.
- Vandal Resistance: IK10-rated for protection against tampering.
- PoE Support: Simplifies installation with Power over Ethernet.
- Rugged Design: IP67-rated for outdoor use.
- 3-Axis Adjustment: Allows flexible installation and positioning.
| Specification | IPC328LE-ADF28K-G |
| Camera | |
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Support Easystar: Colour: 0.005 lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360° |
| WDR | 120dB |
| S/N Ratio | >56dB |
| Lens | |
| Lens Type | 2.8mm@F1.6, fixed lens |
| Field of View (H) | 112.9° |
| Field of View (V) | 59.1° |
| Field of View (D) | 121.2° |
| DORI Distance | |
| Detect (m) | 84m (275.6ft) |
| Observe (m) | 33.6m (110.2ft) |
| Recognize (m) | 16.8m (55.1ft) |
| Identify (m) | 8.4m (27.6ft) |
| Illuminator | |
| IR Range | Up to 30m (98ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (38402160) @ 20fps, 5MP (30721728) @ 30fps, 4MP (25601440) @ 30fps, 1080P (19201080) @ 30fps |
| Sub Stream | 1080P (1920*1080), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Not Supported |
| Audio Suppression | Supported |
| Sampling Rate | 8KHz |
| Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Certifications | CE, FCC, UL |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.5W |
| Dimensions (Ø × H) | Φ109 x 83mm (Φ4.3” x 3.3”) |
| Weight | 0.37kg (0.82lb) |
| Material | Metal |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Camera Type | Dome Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 8 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 2.8mm Lens |
| Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
| Smart Features | Behavior Detection, Built-in Microphone, Smart Intrusion Prevention, Smart IR, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
