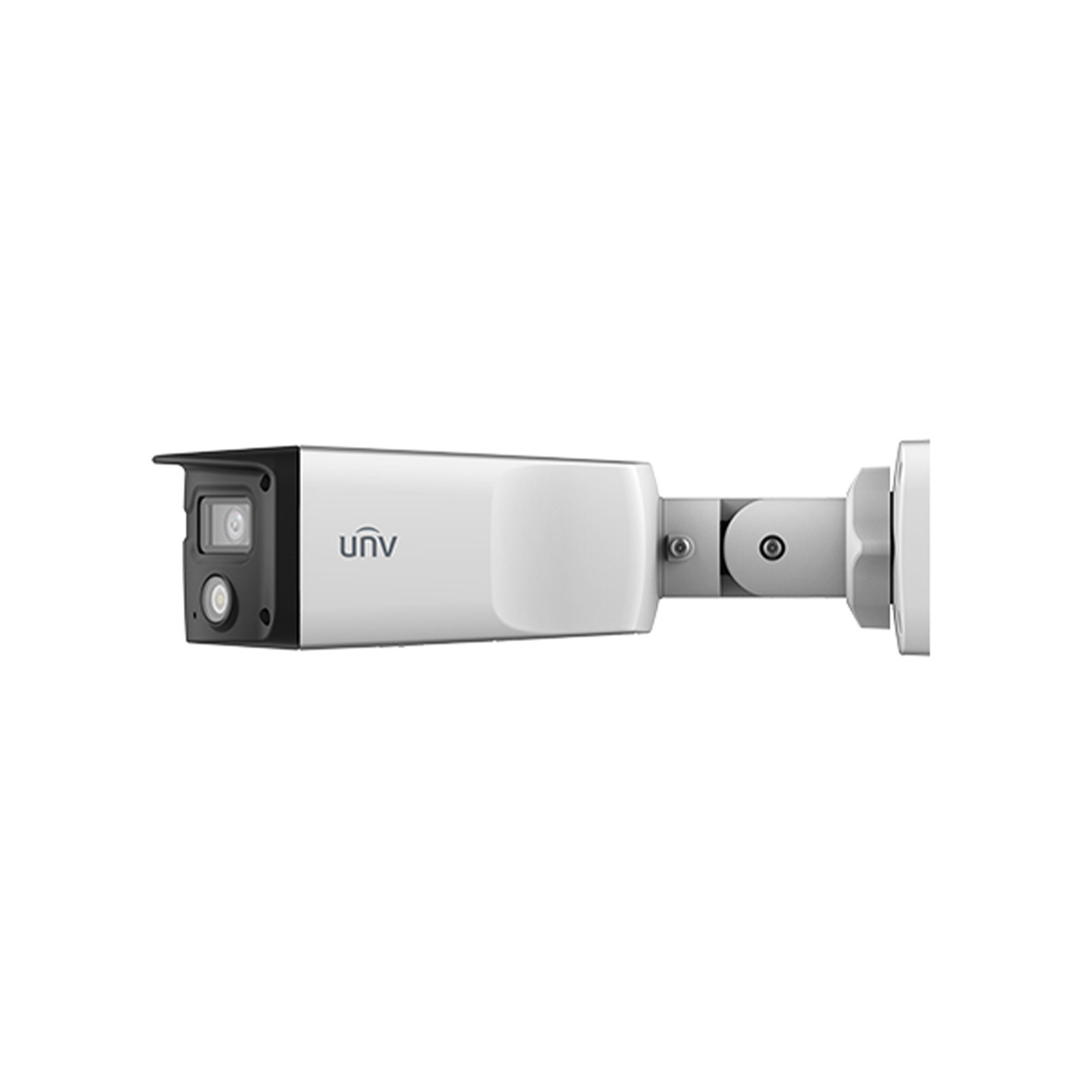

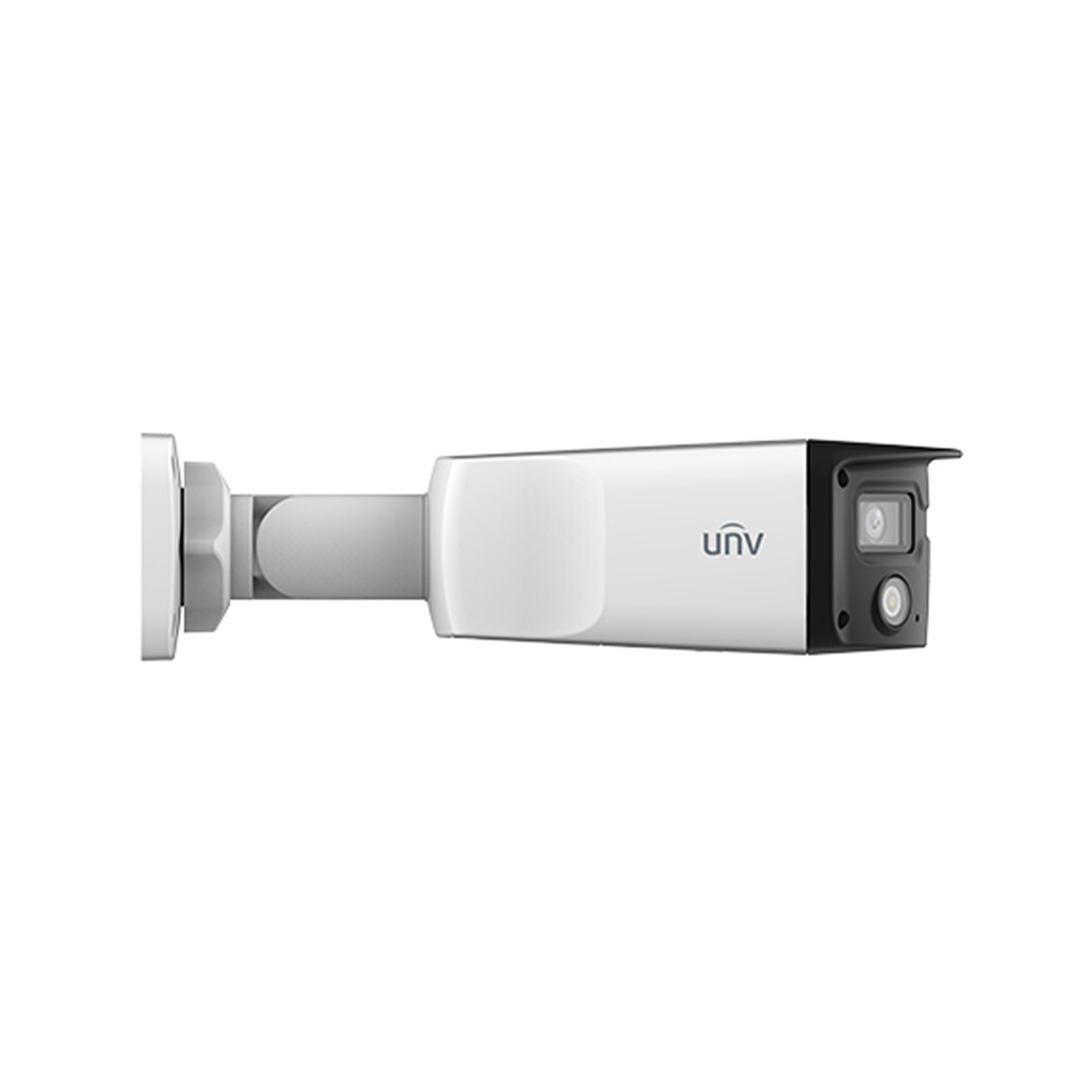

IPC2K24SE-ADF40KMC-WL-I0 – 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera, Dual Lens, Built-in Speaker & Dual Mics, Supports Micro SD, IP67, IK10
EGP7,475
Brand:
Uniview
IP CAMERA — IPC2K24SE-ADF40KMC-WL-I0
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 4 Megapixel |
| Lens Type | Dual Lens Wide Angel |
| Focal Length | 4mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, Behavior Detection, Built-in LEDs, Built-in Microphone, ColorHunter, HLC, Human Body Detection, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR, TWDR, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
... people are viewing this right now
The IPC2K24SE-ADF40KMC-WL-I0 is a high-performance 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera designed to deliver superior image quality with its 1/2.9″ CMOS sensor. It provides a 4MP resolution (3840×1080) at 25fps when Human Body Detection is off, and 20fps when it is on. This camera utilizes double lens splicing technology, achieving a wide horizontal field of view of 160.00° ± 10°. The ColorHunter technology ensures vibrant full-color images 24/7, even in low-light conditions.
Key Features:
- High-Quality Imaging: 4MP resolution with a 1/2.9″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats.

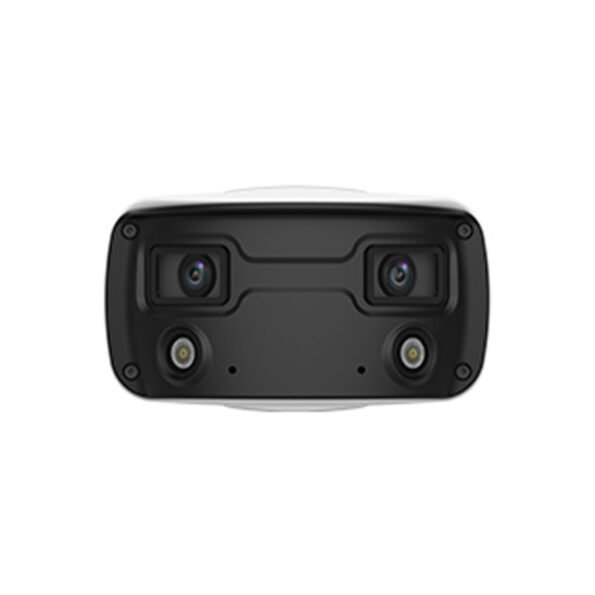

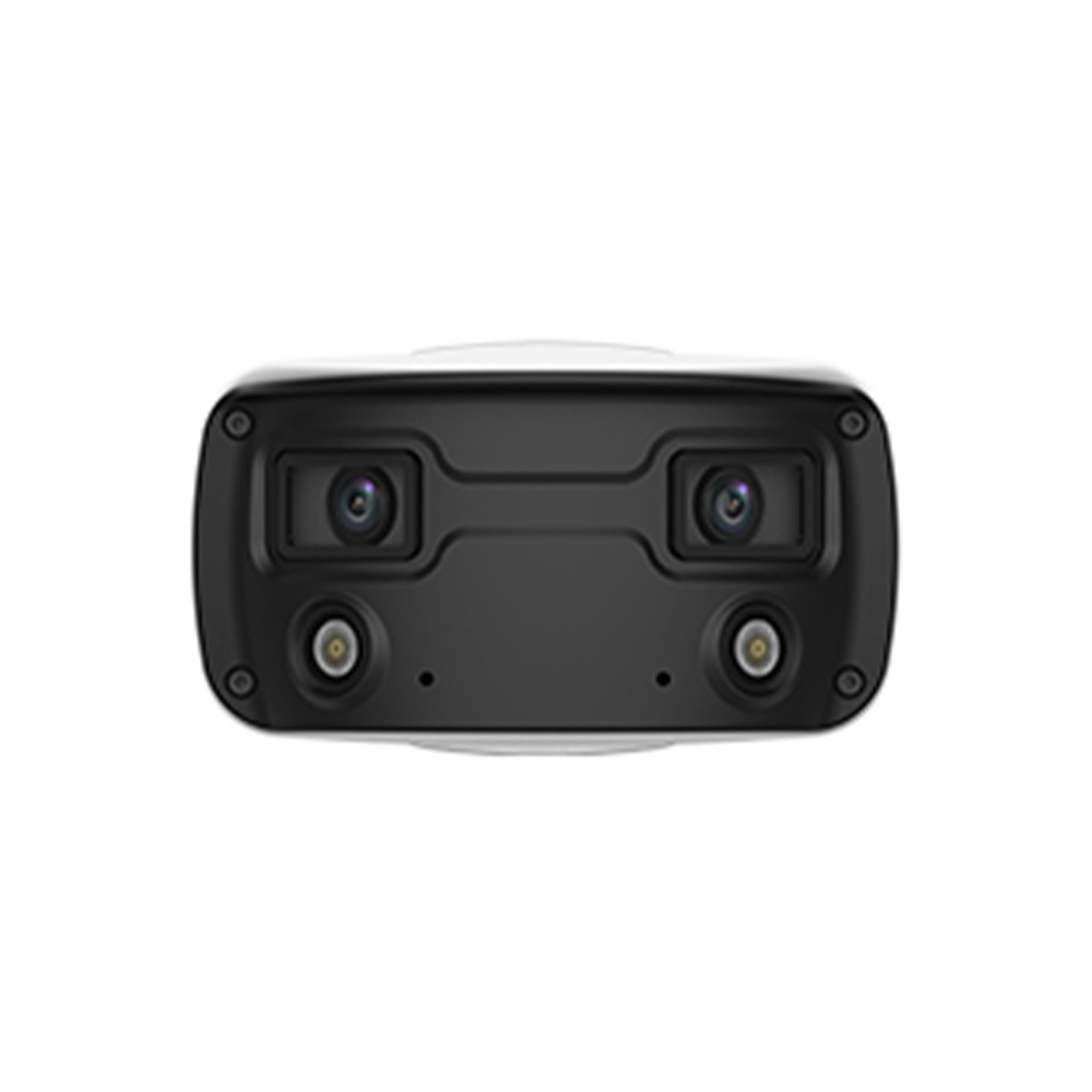

- Wide Angle View: Double lens splicing technology provides a 160° horizontal field of view.
- Human Body Detection: Enhanced security with built-in human body detection, motion detection, and tampering alarm.
- Smart Illumination: Built-in LEDs with a range up to 30m for clear visibility in low-light conditions.
- Two-Way Audio: Built-in speaker and dual mics for clear audio input and output.
- Robust Design: IP67 and IK10-rated for protection against harsh weather and vandalism.
- Edge Storage: Supports up to 256GB micro SD card for local storage.
- Power Over Ethernet (PoE): Simplifies installation by combining data and power transmission over a single cable.
| Specification | Details |
| Model | IPC2K24SE-ADF40KMC-WL-I0 |
| Camera | |
| Sensor | 1/2.9" CMOS |
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| WDR | DWDR |
| S/N Ratio | >56dB |
| Lens | |
| Lens | 2 * 4.0mm @ F1.0 |
| Iris | Fixed |
| Field of View (H) | 160.00° ± 10° |
| Field of View (V) | 43.22° |
| Field of View (D) | 180.13° ± 10° |
| DORI Distance | |
| Detect | 64.3m |
| Observe | 25.7m |
| Recognize | 12.9m |
| Identify | 6.4m |
| Illuminator | |
| LED Distance | Up to 30m (98ft) |
| LEDs Number | 2 |
| LED On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 4MP (3840x1080), Max 25fps (Human Body Detection off) |
| Sub Stream | 1920x540, Max 25fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | N/A |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection |
| General Function | Watermark, IP address filtering, Alarm input/output, access policy, ARP protection, RTSP authentication, User authentication |
| Audio | |
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users; 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Interface | |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p], Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1 in/1 out |
| RS485 | N/A |
| Built-in Mic | Built-in two mics |
| Built-in Speaker | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013), IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12V ±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 6.5W |
| Dimensions (L x W x H) | 273×130×76mm (10.7”×5.1”×3.0”) |
| Weight | 0.95kg (2.09lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 4 Megapixel |
| Lens Type | Dual Lens Wide Angel |
| Focal Length | 4mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, Behavior Detection, Built-in LEDs, Built-in Microphone, ColorHunter, HLC, Human Body Detection, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR, TWDR, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
