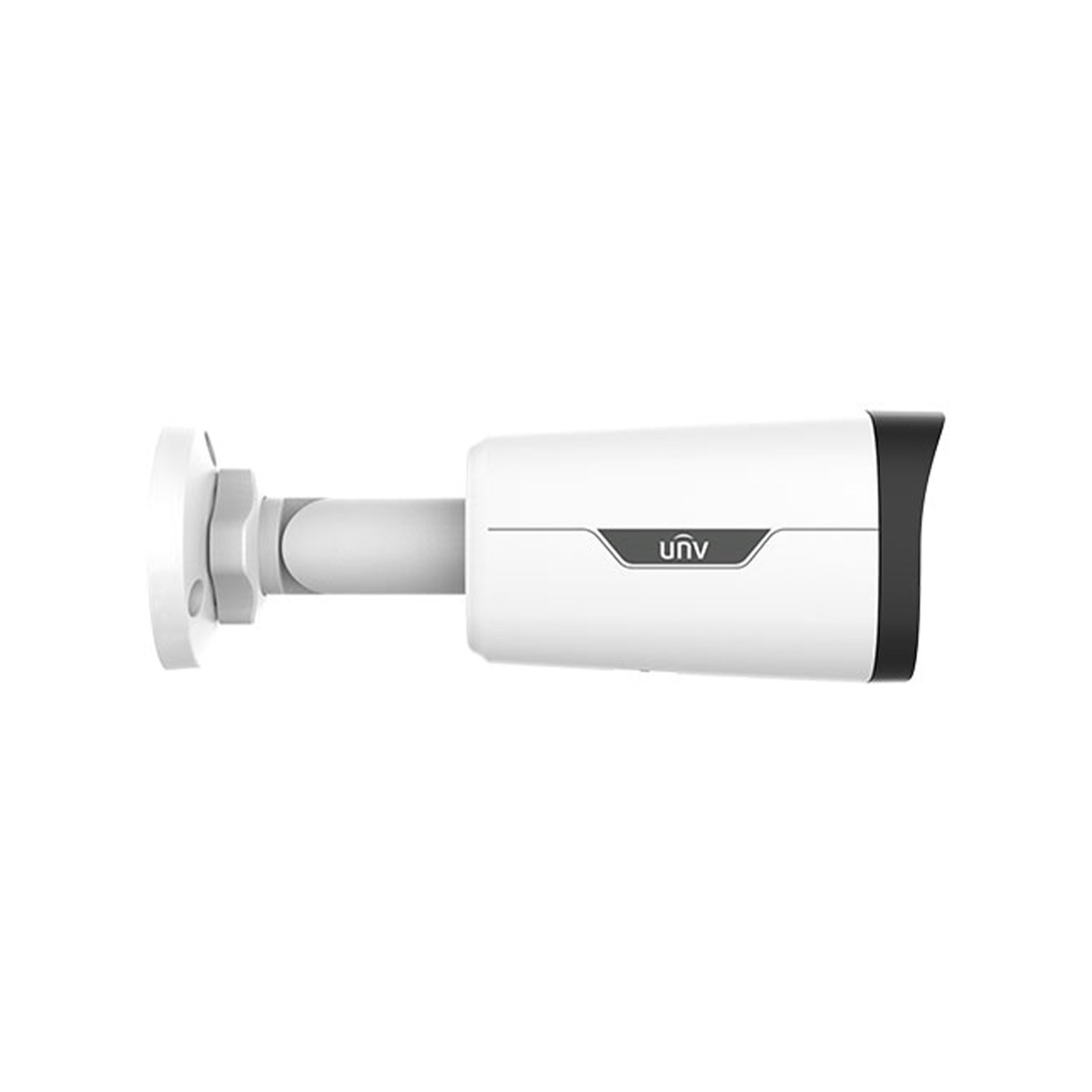

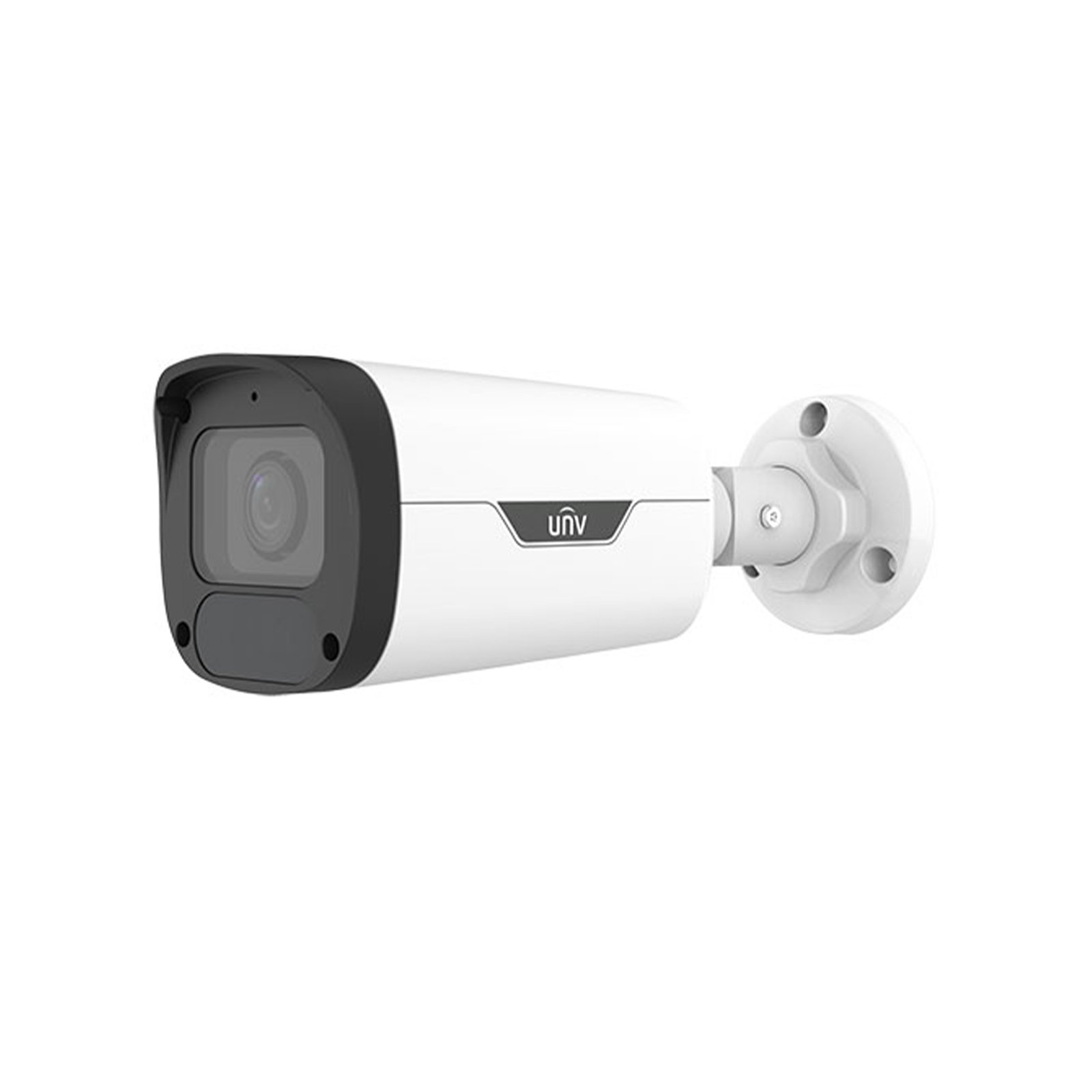

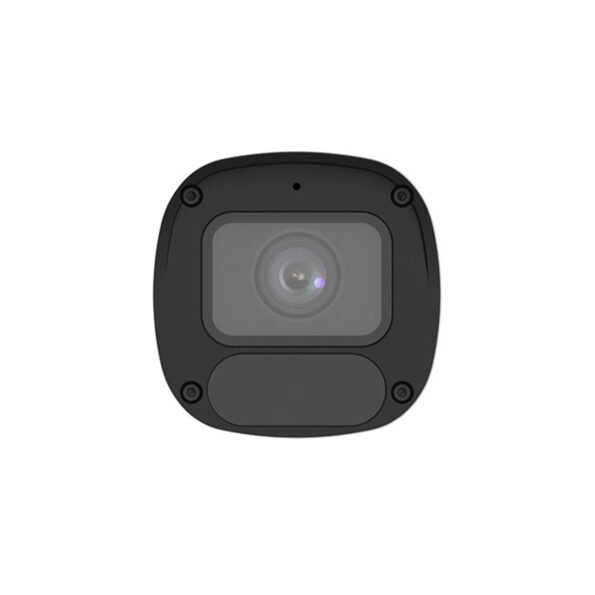

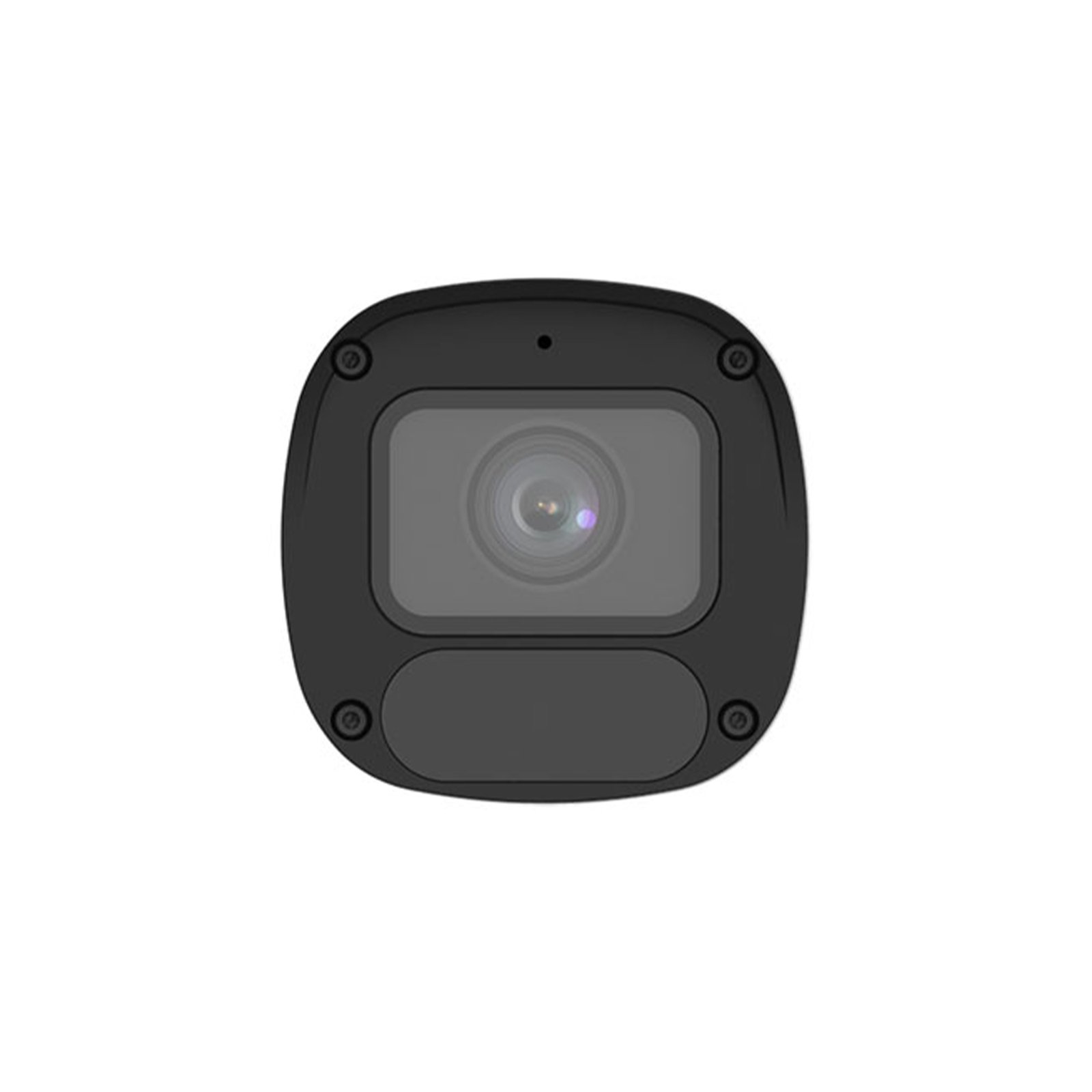

IPC2325LB-ADZK-H – 5MP HD IR VF Bullet Network Camera, 2.8~12mm Motorized Varifocal Lens, 1/2.7″ CMOS Sensor, Built-in Mic, Smart IR, Supports Micro SD, IP67 Protection
EGP5,005
IP CAMERA — IPC2325LB-ADZK-H
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
| Smart Features | Behavior Detection, Built-in Microphone, ColorHunter, Corridor Mode, Intrusion Prevention, IR-Cut filter, Motion Detection, People Counting, Smart IR, TWDR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
Out of stock
... people are viewing this right now
The IPC2325LB-ADZK-H is a high-performance 5MP Bullet Network Camera with a 2.8~12mm motorized varifocal lens and AF auto focus, providing flexible field-of-view adjustments. It features a 1/2.7″ CMOS sensor that delivers 5MP resolution at 25fps, and supports advanced video compression technologies like Ultra 265, H.265, H.264, and MJPEG. With a 120dB true WDR for clear imaging in high-contrast scenes, the camera also includes Smart IR with a range of up to 50 meters (164ft) for superior night vision. The built-in microphone adds audio capture capability, enhancing surveillance. The camera supports 9:16 Corridor Mode, 256GB Micro SD card storage, and PoE for easy installation. Its IP67 rating ensures protection in harsh outdoor environments, and it has 3-axis adjustment for flexible positioning.
Key Features Include:
- High-Quality Imaging: 5MP resolution with 1/2.7″ CMOS sensor.
- Motorized Varifocal Lens: 2.8~12mm, AF automatic focusing.
- Built-in Microphone: Captures audio for enhanced surveillance.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG.
- Smart IR: Night vision up to 50 meters (164 feet).
- 120dB WDR: Ensures clear images in challenging lighting conditions.
- Micro SD Card Support: Supports 256GB Micro SD storage for edge recording.
- PoE Support: Simplifies installation with Power over Ethernet.
- 3-Axis Adjustment: Flexible installation and positioning.
- Robust Protection: IP67 rating for outdoor use.
| Specification | IPC2325LB-ADZK-H |
| Camera | |
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.001 lux (F1.6, AGC ON), 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| WDR | 120dB |
| S/N Ratio | >52dB |
| Lens | |
| Lens Type | 2.8~12mm, AF automatic focusing, motorized varifocal lens |
| Field of View (H) | 96.4° ~ 32.7° |
| Field of View (V) | 51.3° ~ 18.6° |
| Field of View (D) | 101.2° ~ 37.2° |
| DORI Distance | |
| 2.8mm Detect (m) | 63m (206.7ft) |
| 2.8mm Observe (m) | 25.2m (82.7ft) |
| 2.8mm Recognize (m) | 12.6m (41.3ft) |
| 2.8mm Identify (m) | 6.3m (20.7ft) |
| 12mm Detect (m) | 270m (885.8ft) |
| 12mm Observe (m) | 108m (354.3ft) |
| 12mm Recognize (m) | 54m (177.2ft) |
| 12mm Identify (m) | 27m (88.6ft) |
| Illuminator | |
| IR Range | Up to 50m (164ft) |
| IR Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880x1620) @ 25fps, 4MP (2560x1440) @ 25fps, 3MP (2304x1296) @ 30fps, 1080P (1920x1080) @ 30fps |
| Sub Stream | 720P (1280x720), Max 30fps |
| Video Bit Rate | 128 Kbps~6 Mbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Cross line, intrusion detection, motion detection, tampering alarm, audio detection |
| General Functions | Watermark, IP filtering, Access policy, ARP protection, RTSP authentication |
| Audio | |
| Built-in Mic | Supported |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Certifications | CE, FCC, UL |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 9.6W |
| Dimensions (L × W × H) | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) |
| Weight | 0.51kg (1.12lb) |
| Material | Graphene + Metal |
| Ingress Protection | IP67 |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
| Smart Features | Behavior Detection, Built-in Microphone, ColorHunter, Corridor Mode, Intrusion Prevention, IR-Cut filter, Motion Detection, People Counting, Smart IR, TWDR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
