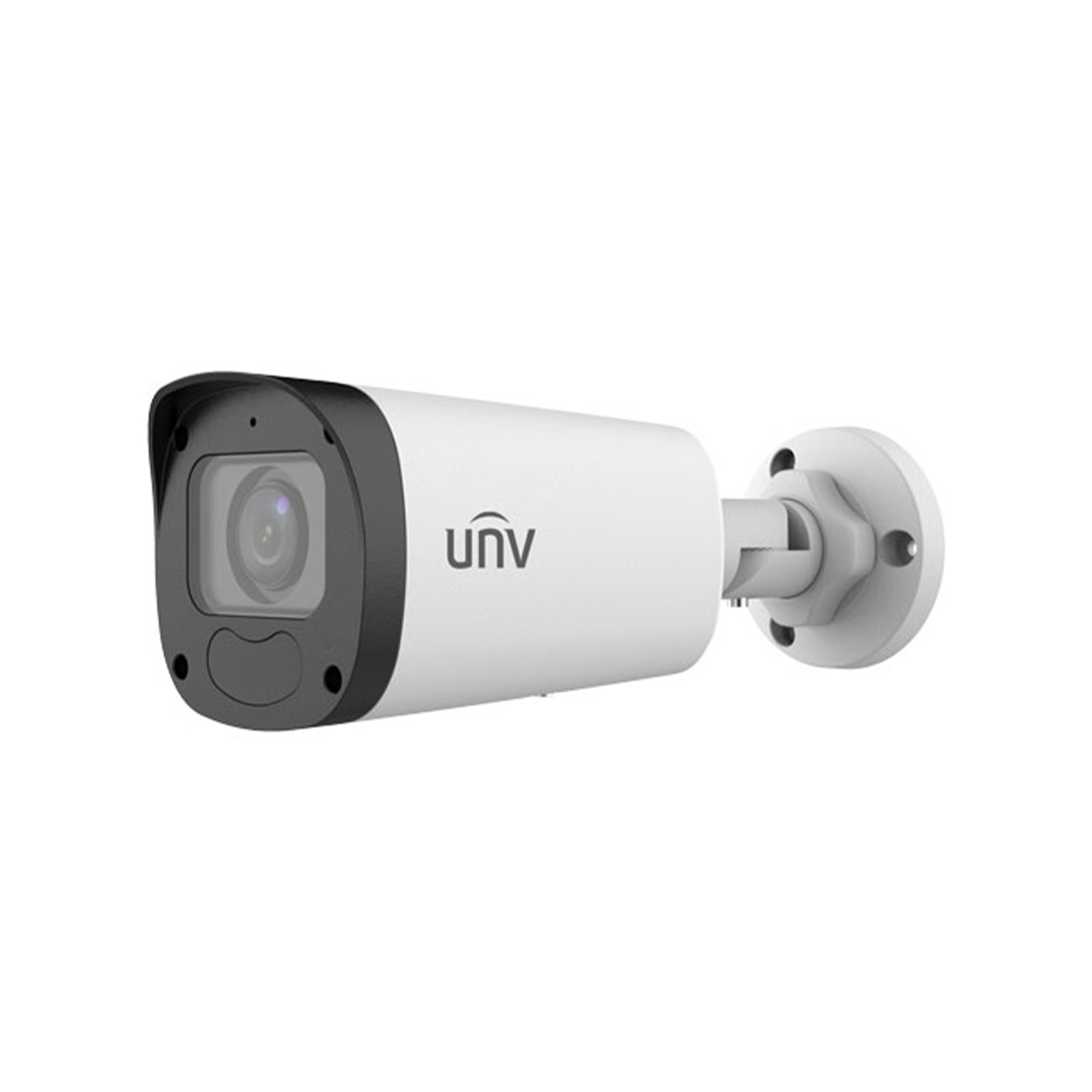

IPC2324LB-ADZK-G – 4MP HD IR Bullet Network Camera, Motorized Zoom Lens (2.8~12mm), Built-in Mic, Supports Micro SD, IP67, IK10
EGP4,500
Brand:
Uniview
IP CAMERA — IPC2324LB-ADZK-G
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 4 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, Behavior Detection, Built-in Microphone, HLC, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR, TWDR, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
... people are viewing this right now
The IPC2324LB-ADZK-G is a high-performance 4MP HD IR Bullet Network Camera designed for robust outdoor surveillance. It features a 1/3″ 4.0 megapixel progressive scan CMOS sensor that delivers sharp 4MP resolution at up to 25fps. The camera supports advanced video compression formats including Ultra 265, H.265, H.264, and MJPEG, optimizing storage and bandwidth efficiency. With 120dB true WDR (Wide Dynamic Range) technology, the camera provides clear images even in high-contrast lighting environments.
This camera is equipped with a motorized zoom lens (2.8 ~ 12mm), allowing for flexible focal length adjustments from wide-angle to narrow views. The Smart IR technology extends night vision capabilities up to 50 meters (164 feet), ensuring excellent image quality in low-light conditions. It also features a built-in microphone for audio recording and supports up to 256GB Micro SD card for edge storage. The IP67 weatherproof and IK10 vandal-resistant ratings ensure durability in harsh outdoor environments, protecting against dust, water, and impact.
Key Features Include:
- High-Quality Imaging: 4MP resolution with a 1/3″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats.
- Smart IR: Provides up to 50m (164ft) IR distance for superior night vision.
- Motorized Zoom Lens: 2.8 ~ 12mm lens with automatic focusing.
- Wide Dynamic Range: 120dB true WDR for balanced exposure in various lighting conditions.
- Audio Functionality: Built-in microphone for capturing clear audio.
- Expandable Storage: Supports up to 256GB Micro SD card for local storage.
- Robust Protection: IP67 weatherproof and IK10 vandal-resistant ratings.
- Power over Ethernet (PoE): Simplifies installation with PoE support.
- 3-Axis Adjustment: Allows for flexible installation and positioning.
| Specification | IPC2324LB-ADZK-G |
| Megapixel | 4 Megapixel |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON); 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N Ratio | >56dB |
| WDR | 120dB |
| Lens | |
| Lens Type | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| Lens Mount | Φ14 |
| Angle of View (H) | 102.79° ~ 30.86° |
| Angle of View (V) | 54.50° ~ 17.49° |
| Angle of View (O) | 106.94° ~ 35.49° |
| DORI Distance | Lens (mm) |
| 2.8 | |
| 12 | |
| Illuminator | |
| IR Range | Up to 50m (164ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (26881520), Max 25fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF (704288), Max 30fps; CIF (352*288), Max 30fps
|
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events | Cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZView, EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Certification | |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1, UL: UL60950-1, IEC 60950-1 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 8.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) |
| Weight | 0.55kg (1.2lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Supported |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 4 Megapixel |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8mm – 12mm Varifocal Lens |
| Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording, XVR (EXtended Video Recorder) |
| Smart Features | 2D 3D DNR, Behavior Detection, Built-in Microphone, HLC, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR, TWDR, Vandal-resistant |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
