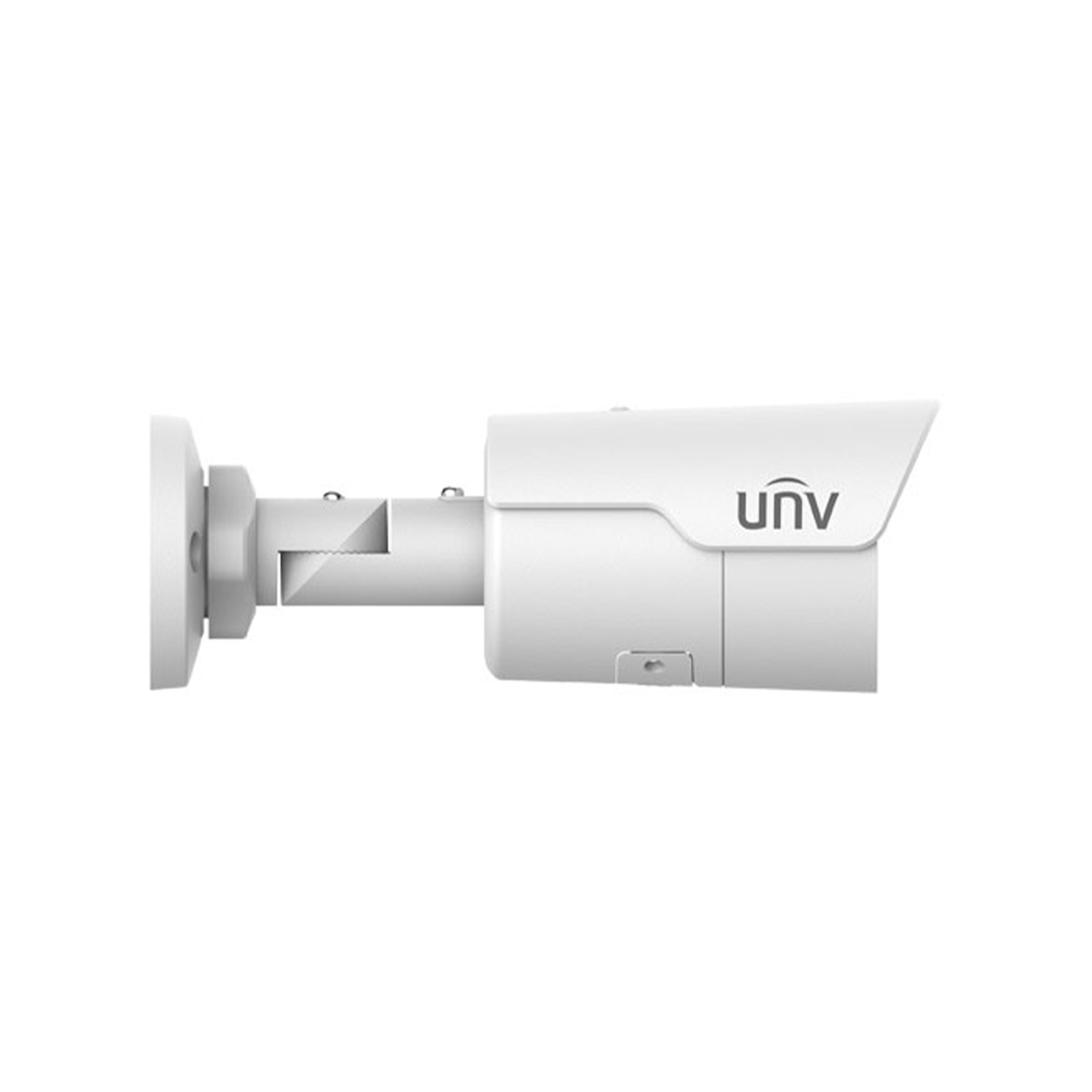

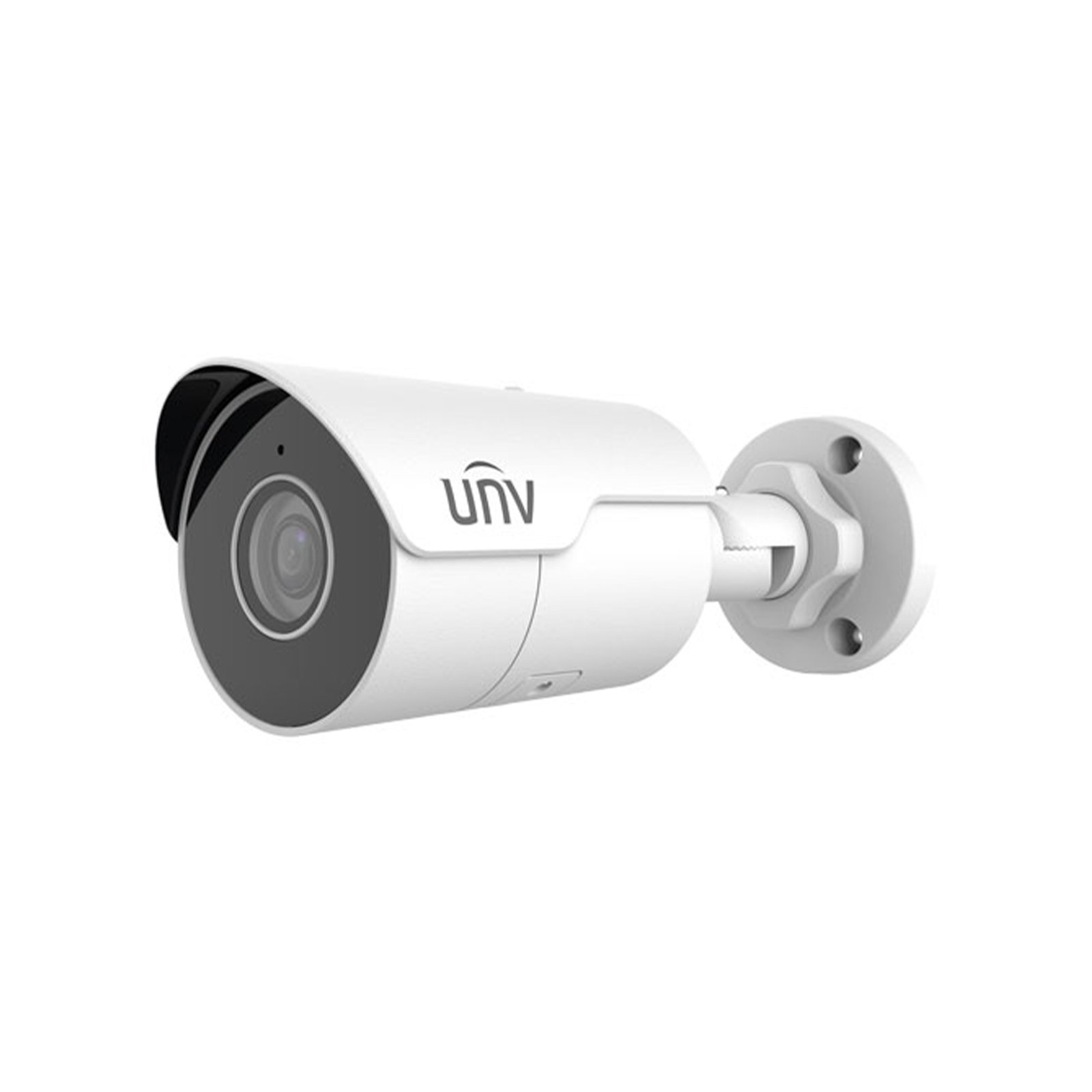

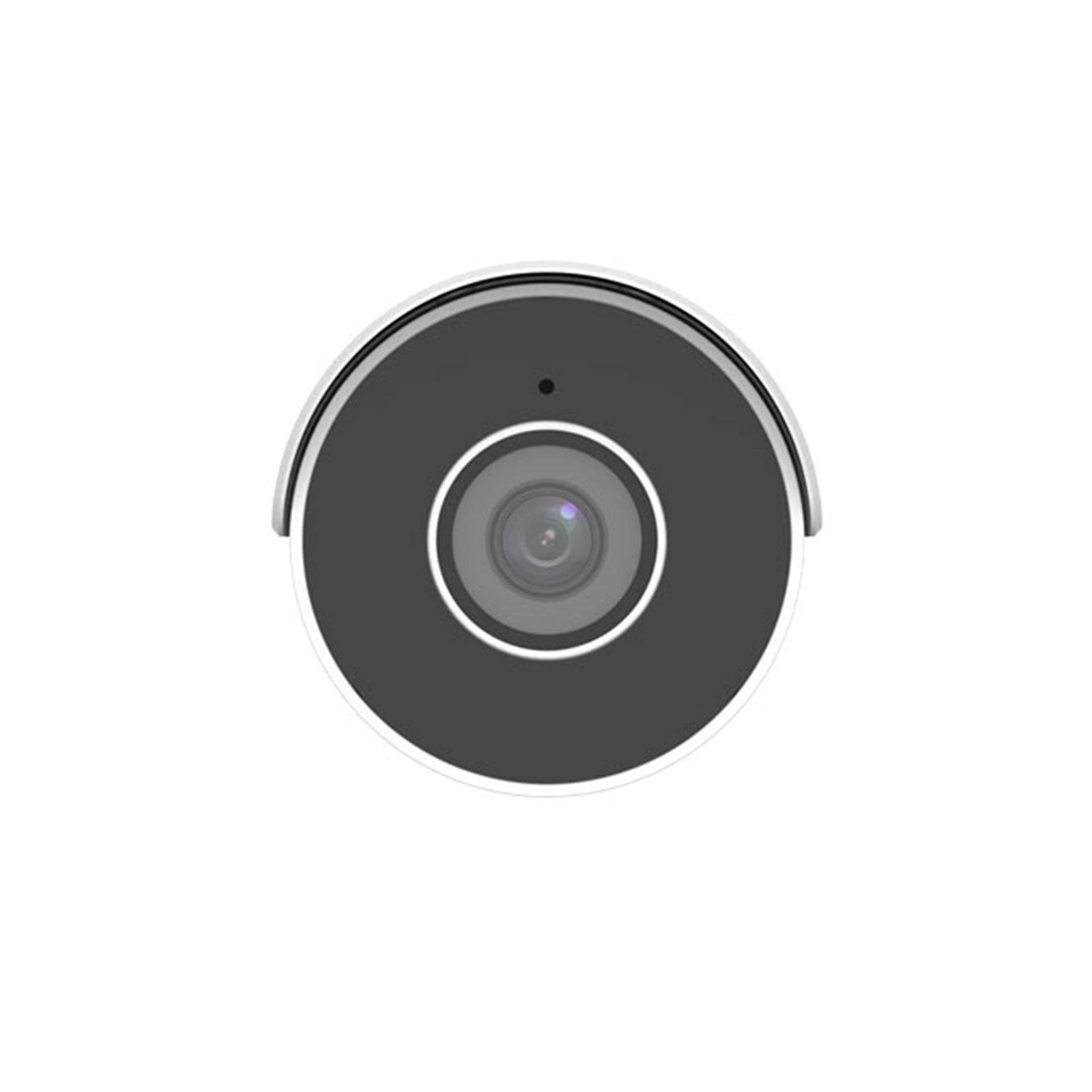

IPC2128LE-ADF40KM-G – 4K Mini Fixed Bullet Network Camera, 4.0mm Lens, 1/2.7″ CMOS Sensor, Smart IR, Built-in Mic, Supports 256GB Micro SD, IP67 Protection
EGP6,110

IP CAMERA — IPC2128LE-ADF40KM-G
Camera Type | IP Camera, Mini Bullet |
---|---|
Camera – Usage | Outdoor Camera |
Connection type | Wired ( Ethernet ) |
Resolution | 8 Megapixel |
Lens Type | Fixed Lens |
Focal Length | 4mm Lens |
Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
Smart Features | Built-in Microphone, Easystar Technology, Motion Detection, Smart Intrusion Prevention, Smart IR |
Power Supply | PoE |
Ingress Protection Rating (IP) | IP67 |
- Delivery & Return
Delivery
Our business days are Saturday to Thursday only, weekends and holidays are not included. Varies depending on delivery option chosen Home Delivery: Delivery time starts from the day you place your order to the day one of our delivery assistants first attempts to deliver it to you Store Pickup: Pickup time starts from the day you place your order until you receive our call to pick up your order from your chosen store.Return
If the customer wishes to return or exchange the product, he can do so within 30 days from the date of purchase, as follows:
Refunds will only be made through the original payment method. Attach the original purchase invoice.- The product must be in its original condition with the closure of the manufacturer *The customer can recover the value he paid as recorded and specified in the sales invoice. *The customer has the right to exchange one item for another with the same value mentioned in the invoice.
- In the event of a manufacturing defect, a report will be submitted from the agent.
Help
Give us a shout if you have any other questions and/or concerns. Email: online@carniavl4trading.com Phone: (+201203300779) - Ask a Question
The IPC2128LE-ADF40KM-G is a 4K Mini Fixed Bullet Network Camera designed to deliver ultra-high-definition 8MP (3840×2160) resolution at 20fps for superior clarity in surveillance footage. It features a 4.0mm fixed lens with a horizontal field of view of 91.2°, ensuring wide coverage. Equipped with Easystar technology, it provides enhanced image quality in low-light conditions. The camera supports multiple video compression formats, including Ultra 265, H.265, H.264, and MJPEG, optimizing bandwidth and storage usage. With Smart IR, it delivers clear night vision up to 50 meters. Additionally, 120dB true WDR technology ensures excellent image quality even in high-contrast lighting conditions. The camera also features smart intrusion prevention based on target classification, minimizing false alarms caused by environmental factors such as leaves or lights. With a built-in microphone, support for 256GB Micro SD card, and PoE power supply, this camera is ideal for outdoor installations, backed by its robust IP67 protection rating.
Key Features Include:
- High-Quality Imaging: 8MP resolution with a 1/2.7″ CMOS sensor.
- Lens: 4.0mm fixed lens with a 91.2° horizontal field of view.
- Easystar Technology: Provides enhanced image quality in low-light conditions.
- Smart Intrusion Prevention: Accurate detection of humans, vehicles, and non-vehicles with false alarm filtering.
- Smart IR: Delivers clear night vision up to 50 meters (164 feet).
- 120dB True WDR: Ensures clear images even in high-contrast lighting.
- Built-in Microphone: Captures audio for enhanced surveillance capabilities.
- Micro SD Card Support: Supports up to 256GB Micro SD storage for local recording.
- PoE Support: Simplifies installation with Power over Ethernet.
- Rugged Protection: IP67 rating for outdoor installations in harsh conditions.
Specification | IPC2128LE-ADF40KM-G |
Camera | |
Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
Minimum Illumination | Colour: 0.005 lux (F1.6, AGC ON), 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
WDR | 120dB |
S/N Ratio | >56dB |
Lens | |
Lens Type | 4.0mm@F1.6, fixed lens |
Field of View (H) | 91.2° |
Field of View (V) | 47.9° |
Field of View (D) | 95.9° |
DORI Distance | |
Detect (m) | 120m (393.7ft) |
Observe (m) | 48m (157.5ft) |
Recognize (m) | 24m (78.7ft) |
Identify (m) | 12m (39.4ft) |
Illuminator | |
IR Range | Up to 50m (164ft) |
IR Wavelength | 850nm |
IR On/Off Control | Auto/Manual |
Video | |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 8MP (3840x2160) @ 20fps, 5MP (3072x1728) @ 30fps, 4MP (2560x1440) @ 30fps, 1080P (1920x1080) @ 30fps |
Sub Stream | 1080P (1920x1080), Max 30fps |
Video Bit Rate | 128 Kbps~16 Mbps |
U-code | Supported |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Video Stream | Dual streams |
Image | |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Supported |
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping | N/A |
HLC | Supported |
BLC | Supported |
Defog | Digital Defog |
Events | |
Smart Intrusion Prevention | Line crossing detection, Intrusion detection, Enter area detection, Leave area detection |
Basic Detection | Motion detection, Tampering alarm, Audio detection |
General Functions | Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication |
Audio | |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 64 Kbps |
Two-way Audio | Not Supported |
Audio Suppression | Supported |
Sampling Rate | 8KHz |
Storage | Micro SD, up to 256GB |
Network Storage | ANR, NAS (NFS) |
Network | |
Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
Compatible Integration | ONVIF (Profile S, Profile T, Profile G), API, SDK |
Certifications | CE, FCC, UL |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
Power Consumption | Max 6.5W |
Dimensions (L × W × H) | 190×73×71mm (7.5” × 2.9” × 2.8”) |
Weight | 0.45kg (0.99lb) |
Material | Metal |
Ingress Protection | IP67 |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 4KV |
Camera Type | IP Camera, Mini Bullet |
---|---|
Camera - Usage | Outdoor Camera |
Connection type | Wired ( Ethernet ) |
Resolution | 8 Megapixel |
Lens Type | Fixed Lens |
Focal Length | 4mm Lens |
Storage Options | NAS (Network Attached Storage) Recording, NVR (Network Video Recorder) Recording, SD Card Recording |
Smart Features | Built-in Microphone, Easystar Technology, Motion Detection, Smart Intrusion Prevention, Smart IR |
Power Supply | PoE |
Ingress Protection Rating (IP) | IP67 |
