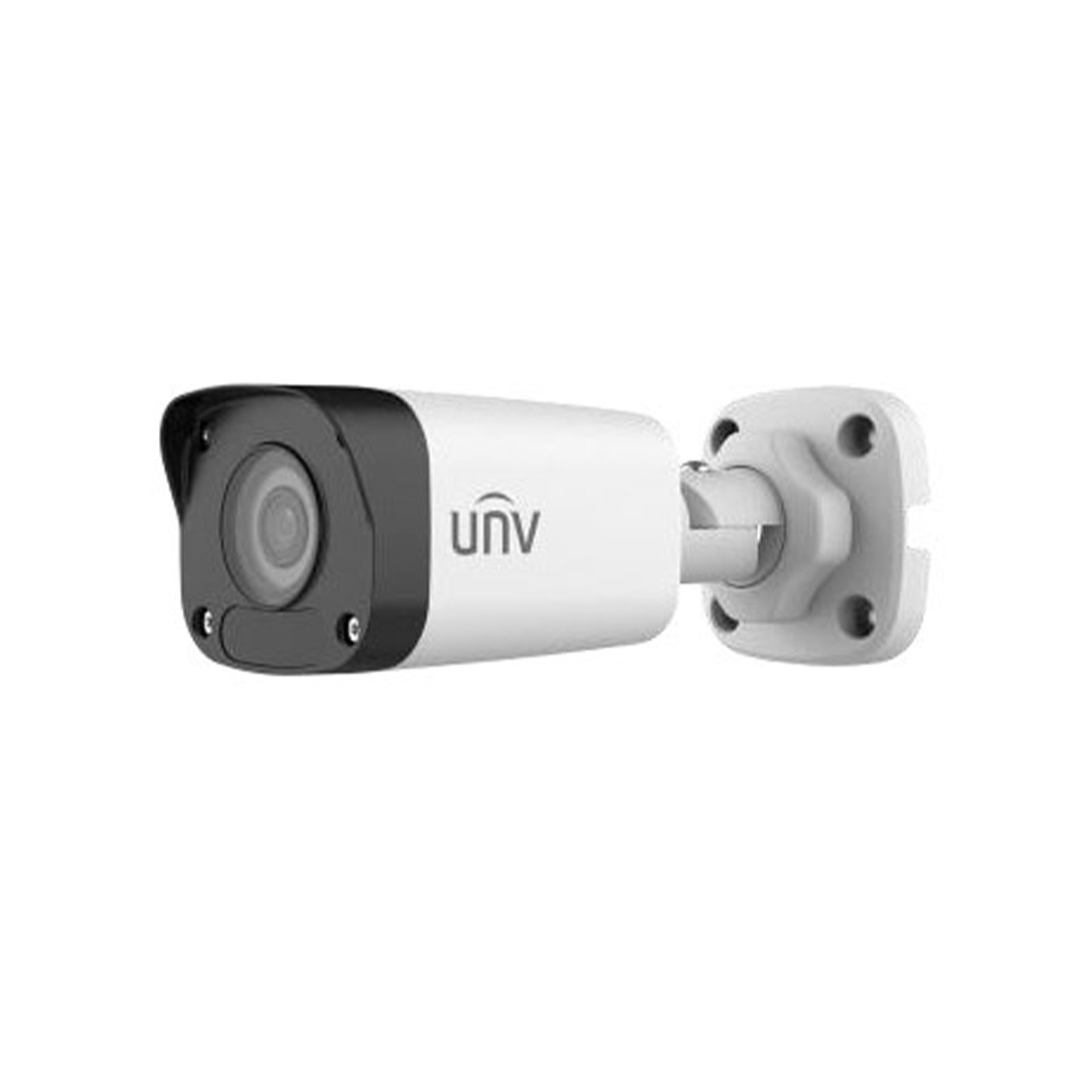

IPC2125LB-SF40-A – 5MP HD IR Bullet Network Camera, 4.0mm Lens, 1/3.0″ CMOS Sensor, Smart IR, Supports Micro SD, IP67 Protection
EGP2,195
Brand:
Uniview
IP CAMERA –IPC2125LB-SF40-A
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 4mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, XVR (EXtended Video Recorder) |
| Smart Features | BLC, Defog, DNR, DWDR, HLC, IR-Cut filter, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
20 people are viewing this right now
The IPC2125LB-SF40-A is a high-performance 5MP HD IR Bullet Network Camera designed to deliver high-quality surveillance in outdoor environments. Featuring a 1/3.0″ CMOS sensor, this camera provides superior image clarity with a resolution of 5MP (2592×1944) at 20fps. It also supports lower resolutions such as 4MP (2560×1440) at 20fps, 3MP (2304×1296) at 20fps, and 2MP (1920×1080) at 30/25fps, making it versatile for various surveillance needs.
This camera is equipped with a 4.0mm fixed lens, providing a horizontal field of view of 79.0°. The Smart IR feature enables night vision up to 30 meters (98ft), ensuring clear images in complete darkness. The camera also incorporates Day/Night functionality with an IR-cut filter that automatically switches based on lighting conditions.
Key Features Include:
- High-Quality Imaging: 5MP resolution with a 1/3.0″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats.
- Smart IR: Provides up to 30m (98ft) IR distance for night vision.
- Day/Night Functionality: Features an IR-cut filter with auto switch (ICR).
- Digital Noise Reduction: 2D/3D DNR for enhanced image clarity.
- Robust Protection: IP67 rating for outdoor use.
- Flexible Power Supply: Supports both DC12V and PoE (IEEE 802.3af).
- Local Storage: Supports up to 128 GB Micro SD card for edge storage.
- 3-Axis Adjustment: Allows flexible installation and positioning.
| Specification | Details |
| Model | IPC2125LB-SF40-A |
| Camera | |
| Sensor | 1/3.0" CMOS |
| Minimum Illumination | Colour: 0.01 lux (F2.1, AGC ON), 0 lux with IR on |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| WDR | DWDR |
| S/N Ratio | >52dB |
| Lens | |
| Lens | 4.0mm @ F2.1 |
| Iris | Fixed |
| Field of View (H) | 79.0° |
| Field of View (V) | 42.3° |
| Field of View (D) | 85.1° |
| DORI Distance | |
| Detect | 90.0m (295.3ft) |
| Observe | 36.0m (118.1ft) |
| Recognize | 18.0m (59.1ft) |
| Identify | 9.0m (29.5ft) |
| Illuminator | |
| IR Range | Up to 30m (98ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | 5MP (2592x1944) Max 20fps; 4MP (2560x1440) Max 20fps; 2MP (1920x1080) Max 30fps |
| Sub Stream | D1 (720x576), Max 30fps; 640x360, Max 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Supported |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction (DNR) | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Motion detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, QoS, SSL/TLS, SMTP |
| Compatible Integration | ONVIF (Profile S, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, WSSE and digest authentication for ONVIF |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
| Safety | CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU), WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V ±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 5.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (L x W x H) | 161 × 63 × 62mm (6.4” × 2.5” × 2.4”) |
| Weight | 0.36kg (0.79lb) |
| Material | Graphene + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Camera Type | Bullet Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 4mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, XVR (EXtended Video Recorder) |
| Smart Features | BLC, Defog, DNR, DWDR, HLC, IR-Cut filter, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IP67 |
