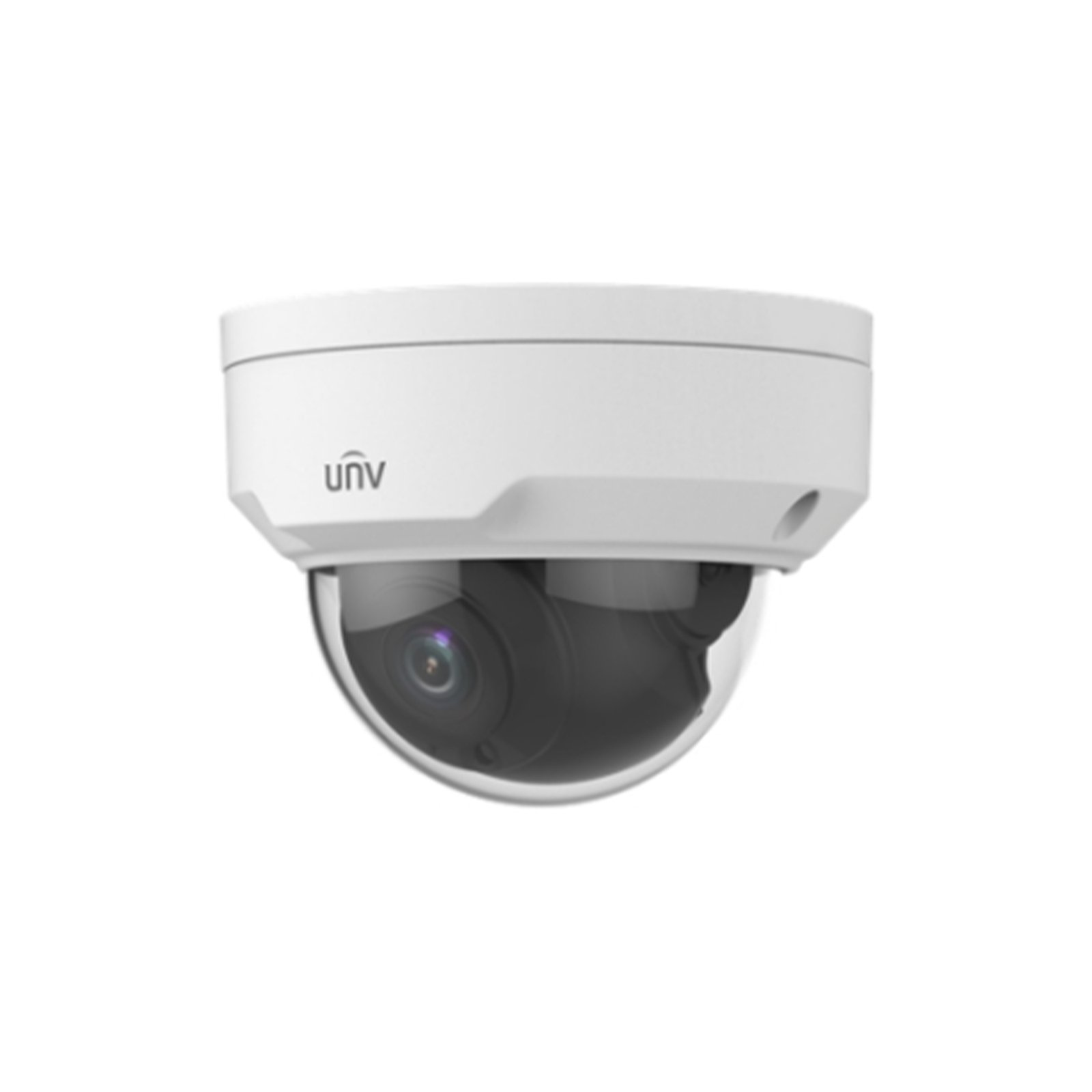

IPC325LB-SF28-A – 5MP Fixed IR Dome Network Camera, Lens 2.8mm, 1/3″ CMOS Sensor, Smart IR, IP67 & IK10 Protection, PoE
EGP2,195
Brand:
Uniview
IP CAMERA — IPC325LB-SF28-A
| Camera Type | Dome Camera, IP Camera |
|---|---|
| Camera – Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 2.8mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, XVR (EXtended Video Recorder) |
| Smart Features | BLC, Defog, DNR, DWDR, HLC, IR-Cut filter, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR, Tampering Alarm |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
... people are viewing this right now
The IPC325LB-SF28-A is a high-performance 5MP Fixed IR Dome Network Camera designed for reliable outdoor surveillance. Featuring a 1/3.0″ CMOS sensor, the camera delivers sharp 5MP (2592×1944) resolution at up to 20fps, ensuring clear image quality in various lighting conditions. It supports advanced video compression formats such as Ultra 265, H.265, H.264, and MJPEG for efficient bandwidth usage. The camera is equipped with Smart IR technology, providing up to 30 meters (98 feet) of night vision. With IP67 and IK10 ratings, it is built to withstand harsh environmental conditions and vandalism, making it ideal for both indoor and outdoor installations. The camera also supports PoE (Power over Ethernet), simplifying installation by reducing cabling needs.
Key Features Include:
- High-Quality Imaging: 5MP resolution with a 1/3.0″ CMOS sensor.
- Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG.
- Smart IR: Provides up to 30m (98ft) IR distance for night vision.
- Day/Night Functionality: IR-cut filter with auto switch.
- Digital Noise Reduction: 2D/3D DNR for enhanced image clarity.
- Robust Protection: IP67 weatherproof and IK10 vandal-resistant ratings.
- Flexible Power Supply: Supports DC12V and PoE (IEEE 802.3af).
- 2-Axis Adjustment: Allows flexible installation and positioning.
| Specification | Details |
| Resolution | 5MP (2592x1944) |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.01 lux (F2.1, AGC ON), 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 3° ~ 360°, Tilt: 0° ~ 68° |
| S/N Ratio | >52dB |
| WDR | DWDR |
| Lens Type | 2.8mm (Fixed) |
| Iris Type | Fixed |
| Iris | F2.1 |
| Field of View (H) | 97.0° |
| Field of View (V) | 52.2° |
| Field of View (D) | 107.5° |
| DORI Distance (Detect) | 63.0m (206.7ft) |
| DORI Distance (Observe) | 25.2m (82.7ft) |
| DORI Distance (Recognize) | 12.6m (41.3ft) |
| DORI Distance (Identify) | 6.3m (20.7ft) |
| IR Range | Up to 30m (98ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | 5MP (2592x1944) Max 20fps; 4MP (2560x1440) Max 20fps; 2MP (1920x1080) Max 30fps |
| Sub Stream | D1 (720x576), Max 30fps; 640x360, Max 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Motion Detection | Motion detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, RTSP/HTTP Authentication, WSSE authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) |
| Safety | CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) |
| Power | DC 12V ±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 5.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight | 0.32kg (0.71lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Camera Type | Dome Camera, IP Camera |
|---|---|
| Camera - Usage | Outdoor Camera |
| Connection type | Wired ( Ethernet ) |
| Resolution | 5 Megapixel |
| Lens Type | Fixed Lens |
| Focal Length | 2.8mm Lens |
| Storage Options | NVR (Network Video Recorder) Recording, XVR (EXtended Video Recorder) |
| Smart Features | BLC, Defog, DNR, DWDR, HLC, IR-Cut filter, Motion Detection, Privacy Masking, Region of Interest (ROI), Smart IR, Tampering Alarm |
| Power Supply | PoE |
| Ingress Protection Rating (IP) | IK10, IP67 |
