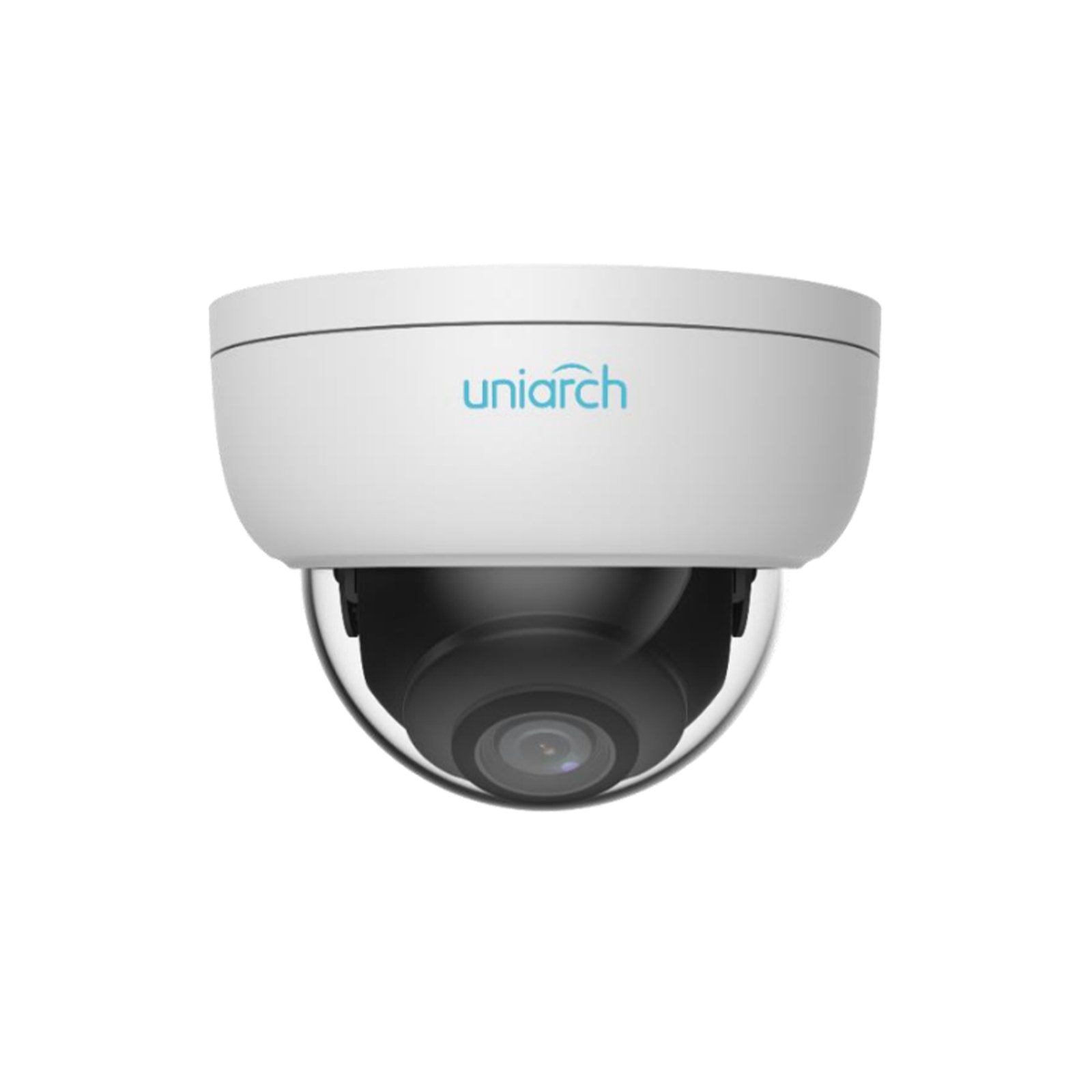

IPC-D125-PF28 – 5MP Vandal-Resistant Dome Network Camera, 2.8mm Lens, Smart IR up to 30m, Ultra 265, H.265, H.264, IP67, IK10
EGP1,885

PC-D125-PF28
Camera Type | Dome Camera |
---|---|
Camera – Usage | Indoor Camera, Outdoor Camera |
Connection type | Wired |
Resolution | 5 Megapixel |
Lens Type | Fixed Lens |
Focal Length | 2.8mm Lens |
Storage Options | NVR (Network Video Recorder) Recording |
Power Supply | PoE |
Smart Features | DNR, DWDR, IR-Cut filter, Smart IR, Vandal-resistant |
Ingress Protection Rating (IP) | IK10, IP67 |
- Delivery & Return
Delivery
Our business days are Saturday to Thursday only, weekends and holidays are not included. Varies depending on delivery option chosen Home Delivery: Delivery time starts from the day you place your order to the day one of our delivery assistants first attempts to deliver it to you Store Pickup: Pickup time starts from the day you place your order until you receive our call to pick up your order from your chosen store.Return
If the customer wishes to return or exchange the product, he can do so within 30 days from the date of purchase, as follows:
Refunds will only be made through the original payment method. Attach the original purchase invoice.- The product must be in its original condition with the closure of the manufacturer *The customer can recover the value he paid as recorded and specified in the sales invoice. *The customer has the right to exchange one item for another with the same value mentioned in the invoice.
- In the event of a manufacturing defect, a report will be submitted from the agent.
Help
Give us a shout if you have any other questions and/or concerns. Email: online@carniavl4trading.com Phone: (+201203300779) - Ask a Question
The IPC-D125-PF28 is a 5MP vandal-resistant dome network camera designed for both indoor and outdoor surveillance. It features day/night functionality, Smart IR technology providing up to 30m (98ft) of IR illumination for superior night vision, and 2D/3D Digital Noise Reduction (DNR) for clearer images. The camera also supports Ultra 265, H.265, H.264, and MJPEG compression formats, optimizing bandwidth and storage. With a rugged design rated IP67 for weather resistance and IK10 for vandal protection, this camera is built for challenging environments. It also comes with wide voltage and temperature support, making it highly versatile.
Key Features Include:
- 5MP Camera with 1080p Full HD resolution
- Day/Night Functionality with IR-cut filter
- Smart IR Technology with up to 30m (98ft) IR distance
- 2D/3D Digital Noise Reduction (DNR)
- Wide Dynamic Range (DWDR) for enhanced image clarity
- Ultra 265, H.265, H.264, MJPEG compression for optimized storage
- Vandal Resistant (IK10) and IP67 Waterproof
- 2-Axis Adjustment for flexible installation
- ONVIF Conformance for third-party integration
Category | IPC-D125-PF28 |
Camera | |
Sensor | 1/3", progressive scan, CMOS |
Lens | 2.8mm @ F2.1 |
DORI Distance | Detect: 63.0m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m |
Angle of View (H) | 89.1° |
Angle of View (V) | 47.3° |
Angle of View (O) | 94.3° |
Adjustment Angle | Pan: 3° ~ 360°, Tilt: 0° ~ 75° |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON), 0Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital Noise Reduction | 2D/3D DNR |
IR Range | Up to 30m (98ft) IR range |
Defog | Digital Defog |
WDR | DWDR |
Video | |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 5MP (2592x1944), Max 20fps; Sub Stream: D1 (720x576), Max 30fps |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
Compatible Integration | ONVIF (Profile S, Profile T), API |
Interface | 10/100M Base-TX Ethernet |
General | |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
Power Consumption | Max 4.5W |
Dimensions (Ø x H) | Ø109 x 81mm (Ø4.3” x 3.2”) |
Weight | 0.33kg (0.73lb) |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 4KV |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
Reset Button | N/A |
Camera Type | Dome Camera |
---|---|
Camera - Usage | Indoor Camera, Outdoor Camera |
Connection type | Wired |
Resolution | 5 Megapixel |
Lens Type | Fixed Lens |
Focal Length | 2.8mm Lens |
Storage Options | NVR (Network Video Recorder) Recording |
Power Supply | PoE |
Smart Features | DNR, DWDR, IR-Cut filter, Smart IR, Vandal-resistant |
Ingress Protection Rating (IP) | IK10, IP67 |
