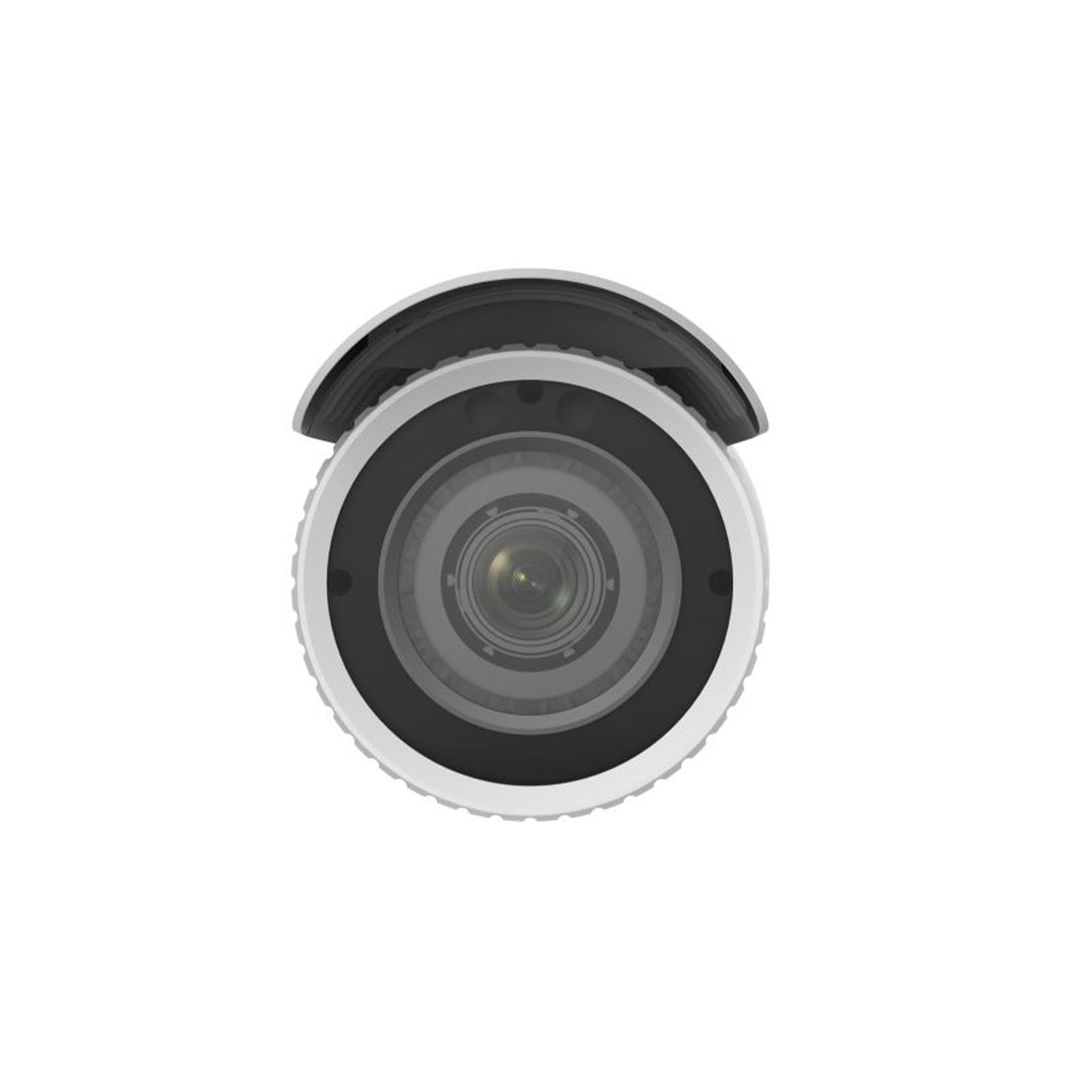

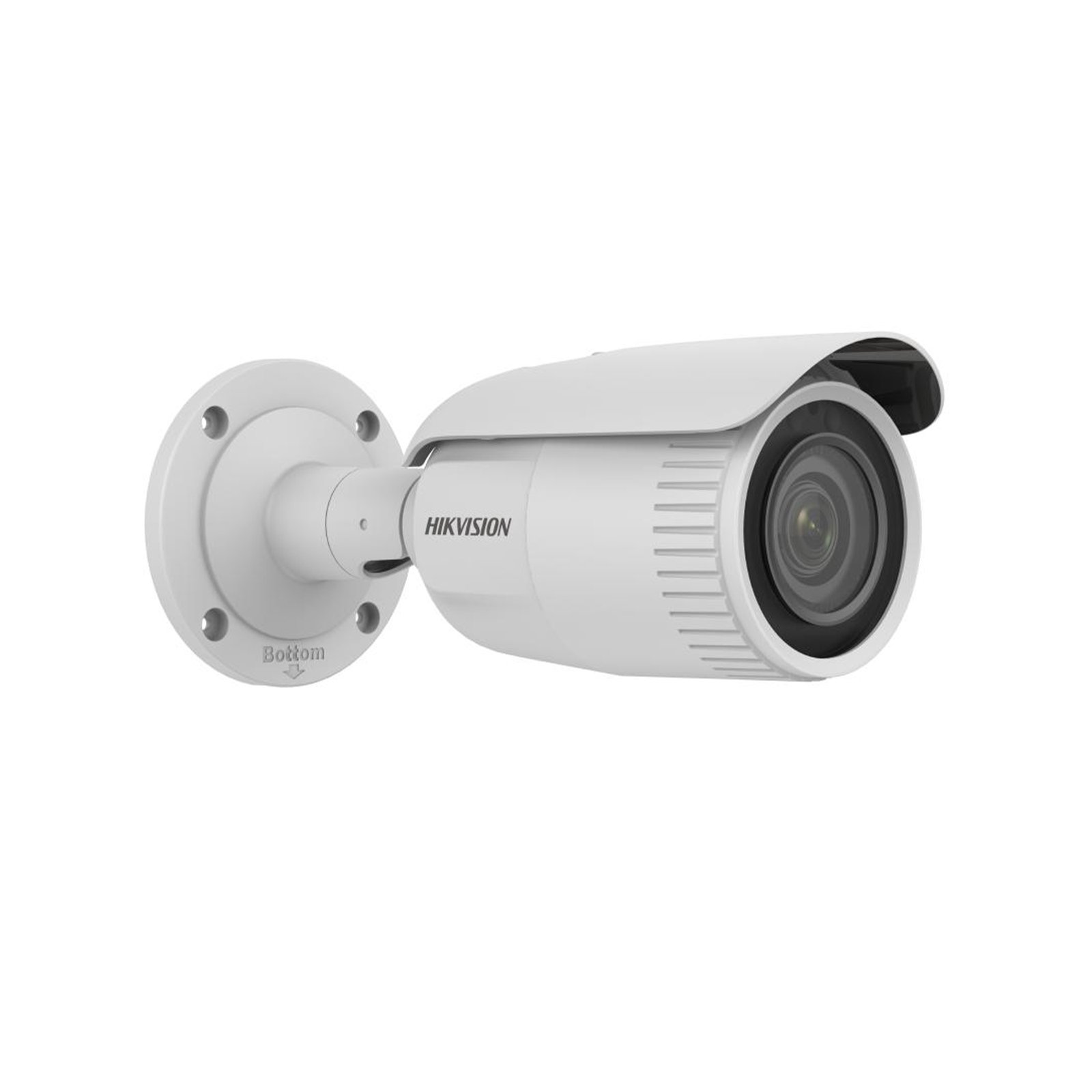

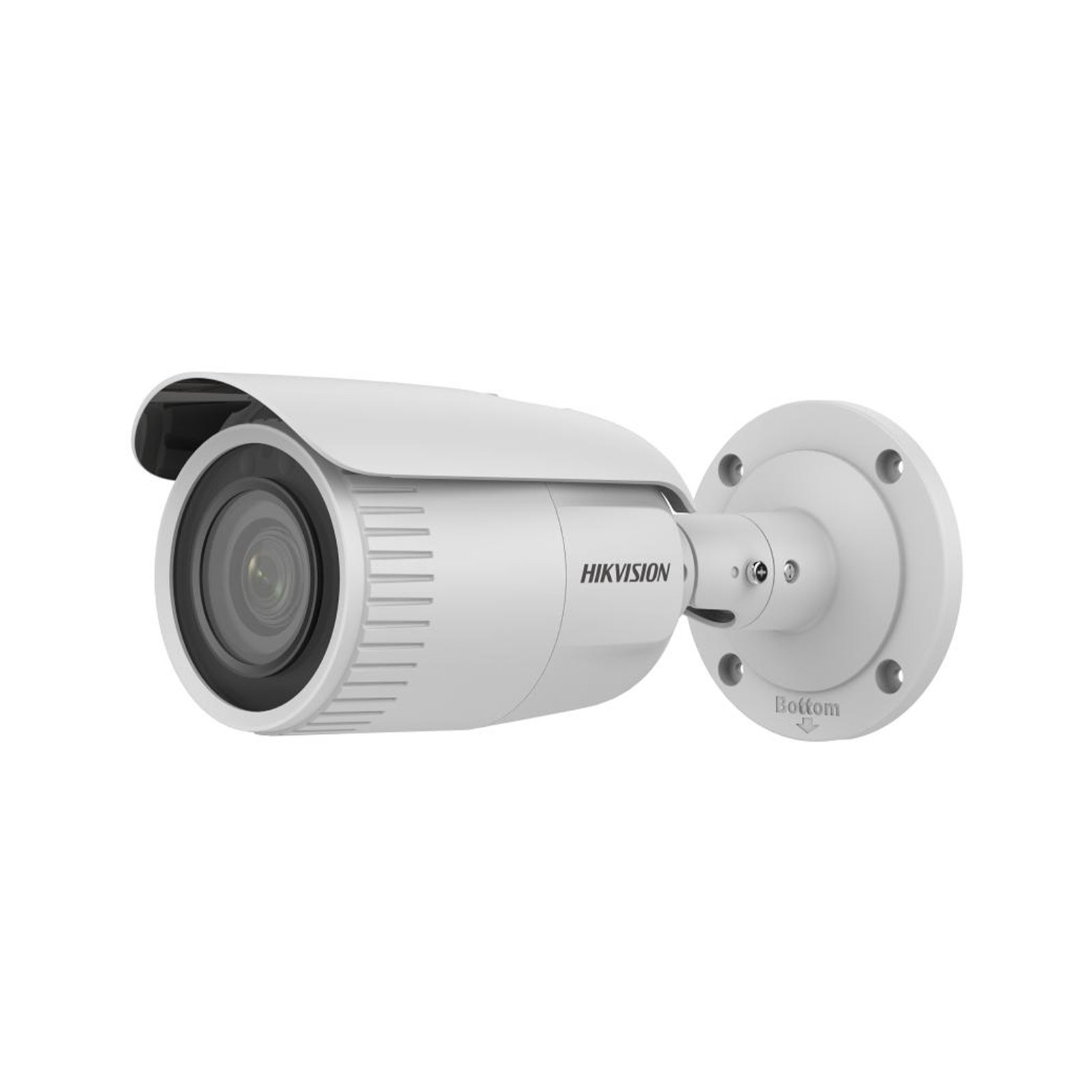

HIKVISION IP – DS-2CD1623G0-IZ (2.8-12mm) – 2 MP Varifocal Bullet Network Camera, Motorized Lens 2.8-12mm, 1/2.7″ CMOS Sensor, IP67
EGP3,935
Camera – Usage | Outdoor |
---|---|
Camera Type | Bullet Camera |
Connection Type | Wired |
Resolution | 2 Megapixel |
Lens Type | Varifocal Lens (Motorized) |
Focal Length | 2.8-12mm Lens |
Storage Options | NVR (Network Video Recorder), microSD Card (Up to 256 GB) |
Power Supply | PoE or DC Power Supply (12 VDC ± 25%, Max. 11 W) |
Smart Features | Digital WDR, 3D DNR, Smart IR, Motion Detection, Video Tampering Alarm |
Night Vision Range | Up to 50 meters with IR |
Operating Temperature | -30°C to 60°C |
Field of View | Horizontal: 96° to 36°, Vertical: 51° to 20°, Diagonal: 113° to 42° |
Video Formats Supported | H.265+, H.265, H.264+, H.264, MJPEG |
Material | Metal & Plastic |
Dimensions | Ø105 mm × 244.4 mm |
Weight | Approx. 1035 g (2.3 lb.) |
Ingress Protection | IP67 |
The DS-2CD1623G0-IZ is a 2 MP bullet camera with a motorized varifocal lens (2.8-12 mm) for flexible field-of-view adjustment. It supports Digital WDR, 3D DNR, and Smart IR for excellent imaging in various lighting conditions, including up to 50 meters of IR range. The camera is IP67-rated for outdoor use and supports H.265+ compression for efficient video storage.
- Delivery & Return
Delivery
Our business days are Saturday to Thursday only, weekends and holidays are not included. Varies depending on delivery option chosen Home Delivery: Delivery time starts from the day you place your order to the day one of our delivery assistants first attempts to deliver it to you Store Pickup: Pickup time starts from the day you place your order until you receive our call to pick up your order from your chosen store.Return
If the customer wishes to return or exchange the product, he can do so within 30 days from the date of purchase, as follows:
 Refunds will only be made through the original payment method. Attach the original purchase invoice.- The product must be in its original condition with the closure of the manufacturer *The customer can recover the value he paid as recorded and specified in the sales invoice. *The customer has the right to exchange one item for another with the same value mentioned in the invoice.
- In the event of a manufacturing defect, a report will be submitted from the agent.
Help
Give us a shout if you have any other questions and/or concerns. Email: online@carniavl4trading.com Phone: (+201203300779) - Ask a Question
The DS-2CD1623G0-IZ is a high-performance 2 MP Varifocal Bullet Network Camera equipped with a 2.8 to 12 mm motorized varifocal lens, allowing for easy installation and flexible monitoring. It delivers sharp, clear images even in challenging lighting conditions, thanks to its Digital WDR and 3D DNR. The camera supports H.265+ compression technology, which reduces bandwidth and storage needs without sacrificing video quality. It is built for durability, with IP67-rated protection against water and dust, making it suitable for outdoor installations.
This camera also supports EXIR 2.0 infrared technology, offering a long IR range of up to 50 meters for excellent nighttime visibility. Additionally, the camera features a microSD card slot for onboard storage of up to 256 GB, providing backup recording capabilities.
Key Features Include:
- High-Quality Imaging: 2 MP resolution (1920 × 1080) with a 1/2.7″ Progressive Scan CMOS sensor.
- Varifocal Lens: 2.8 to 12 mm motorized varifocal lens allows easy adjustment of the field of view.
- H.265+ Compression: Efficient video compression reduces bandwidth and storage requirements.
- Digital WDR: Provides clear imaging in high-contrast lighting environments.
- IR Range: Up to 50 meters with EXIR 2.0 technology for enhanced night vision.
- Water and Dust Resistant: IP67 rating ensures the camera’s durability in harsh outdoor conditions.
- On-Board Storage: Supports up to 256 GB microSD card for local storage.
Specification | DS-2CD1623G0-IZ |
---|---|
Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Resolution | 1920 × 1080 (2 MP) |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Day & Night | IR Cut Filter |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
Lens Type | Motorized Varifocal Lens, 2.8-12 mm |
FOV (Field of View) | 2.8 mm: Horizontal 96°, Vertical 51°, Diagonal 113°; 12 mm: Horizontal 36°, Vertical 20°, Diagonal 42° |
Illuminator Range | Up to 50 meters (IR) |
Video | |
Frame Rate | 50Hz: 25fps (1920 × 1080); 60Hz: 30fps (1920 × 1080) |
WDR | Digital WDR |
Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
On-Board Storage | Supports microSD card up to 256 GB |
Power | 12 VDC ± 25%, Max. 11 W; PoE: 802.3af, Max. 12.9 W |
General | |
Operating Condition | -30°C to 60°C, Humidity: ≤ 95% (non-condensing) |
Material | Metal & Plastic |
Dimensions | Ø105 mm × 244.4 mm |
Weight | Approx. 1035 g (2.3 lb.) |
Ingress Protection | IP67 |
Camera Type | Bullet Camera, IP Camera |
---|---|
Camera - Usage | Indoor Camera, Outdoor Camera |
Connection type | Wired |
Resolution | 2 Megapixel |
Lens Type | Motorized Varifocal Lens |
Focal Length | 2.8mm – 12mm Varifocal Lens |
Storage Options | NVR (Network Video Recorder) Recording, SD Card Recording |
Power Supply | DC Power Supply, PoE |
Smart Features | DNR, DWDR, Motion Detection, Smart IR |
Ingress Protection Rating (IP) | IP67 |
