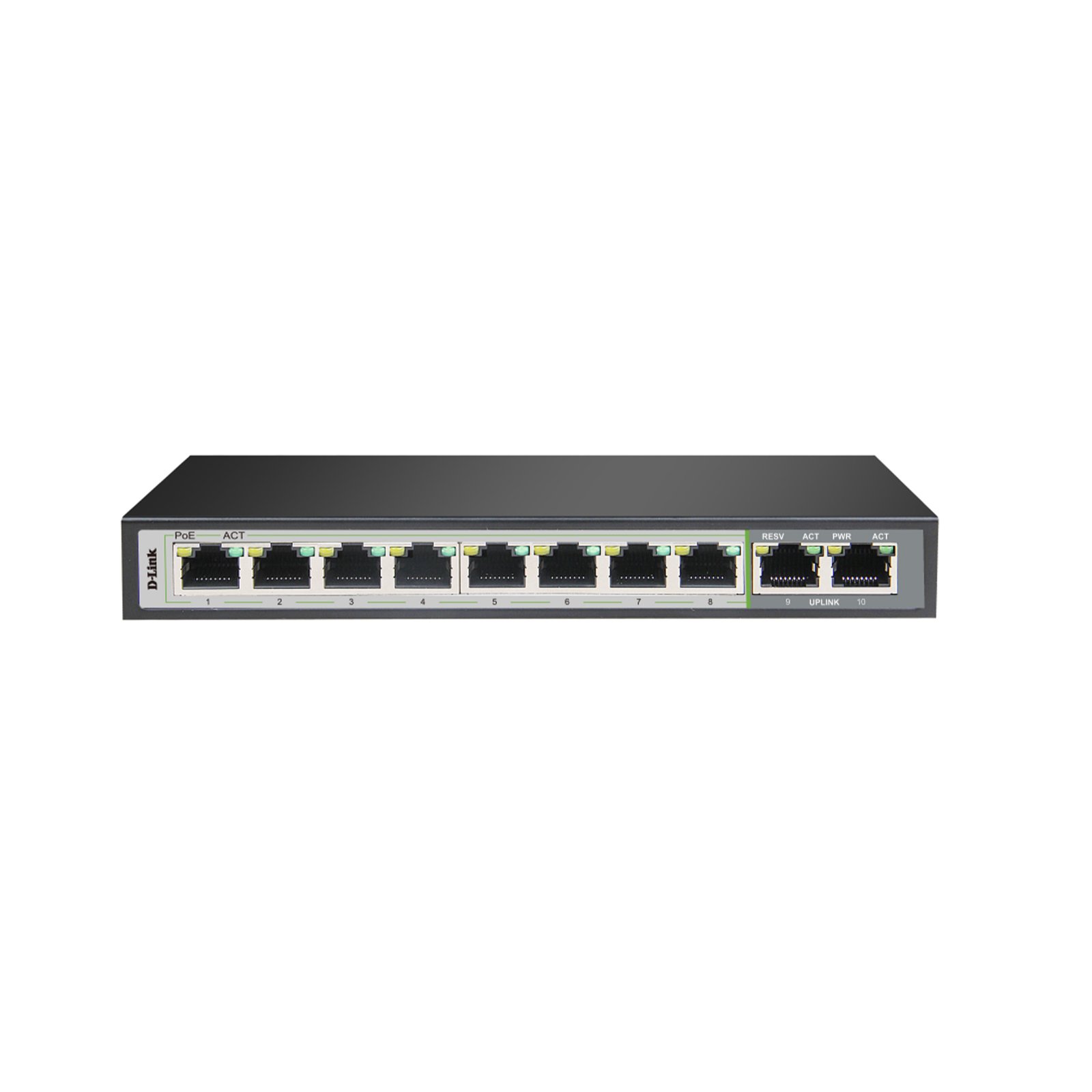

DGS-F1010P-E – 250M 10-Port 10/100/1000 Switch with 8 PoE Ports and 2 Uplink Ports
EGP4,250
| Form Factor | Desktop |
|---|---|
| Switch Ports | 10 Ports (8 PoE+ Ports, 2 Uplink Ports) |
| Port Speed | 10/100/1000 Mbps |
| Power Input | AC: 100-240V |
| PoE Support | IEEE 802.3af/at |
| PoE Power Output | 96W total (30W max per port) |
| Bandwidth | 20 Gbps |
| Layer | Layer 2 |
| VLAN Support | Not Supported |
| Management Type | Unmanaged |
| Power Saving Features | Not Provided |
| Transmission Method | Store-and-forward |
Short Description:
The DGS-F1010P-E is a 10-Port Gigabit PoE Switch with 8 PoE+ ports and 2 uplink ports, offering up to 250 meters PoE transmission and a 96W PoE budget. It supports Auto MDI/MDI-X and Extend Mode, making it ideal for long-distance networking in surveillance or business environments.
The DGS-F1010P-E is a 10-Port Gigabit PoE Switch, designed for fast and reliable networking in small to medium-sized environments. It features 8 Gigabit PoE+ ports and 2 uplink ports, offering flexible connectivity for IP cameras, wireless access points, and other PoE-enabled devices. With a 96W PoE power budget, supporting up to 30W per PoE port, and 250m PoE extension, this switch is perfect for long-distance PoE deployments. The plug-and-play design makes installation simple, and the fanless chassis ensures quiet, noise-free operation.
Key Features Include:
- 10 Gigabit Ports: Includes 8 PoE+ ports and 2 uplink ports for high-speed networking.
- Long Range PoE: Supports up to 250 meters of PoE transmission.
- PoE+ Support: Provides up to 30W per port, with a total 96W PoE budget.
- Smart Features: Extend Mode for long-distance power supply.
- Plug-and-Play: Simple setup with Auto MDI/MDI-X support on all ports.
- Fanless Design: Quiet operation, ideal for noise-sensitive environments.
Specification Sheet: DGS-F1010P-E
| Model | DGS-F1010P-E |
|---|---|
| Device Interfaces | 8 x 10/100/1000 BASE-T PoE+ ports, 2 x 10/100/1000 BASE-T uplink ports |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Flow Control |
| Switching Capacity | 20 Gbps |
| PoE Standards | IEEE 802.3af/at |
| PoE Power Budget | 96W total, 30W max per PoE port |
| Transmission Distance | Up to 250 meters |
| LED Indicators | Power, Link/Activity |
| Power Input | External Power Adapter: 96W |
| Dimensions | 184 mm × 75 mm × 27 mm |
| Weight | 0.95 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% to 95% RH (non-condensing) |
| Fan | Fanless |
| Forwarding Method | Store-and-forward |
| Form Factor | Desktop |
|---|---|
| Switch Ports | 10 Ports |
| POE Ports | 8 Ports (IEEE802.3af/at) |
| Port Speed | 1Gbps (10-100-1000Mbps) |
| PoE Support | IEEE 802.3af/at |
| PoE Power Output | 96W total (30W max per port) |
| Bandwidth | 20 Gbps |
| Layer | Layer 2 |
| VLAN Support | Not Supported |
| Management Type | Unmanaged |
| Transmission Distance | Up to 250 meters |
